Is the Polyurethane Spiral Air Hose UBCS – Durable & Flexible Solution suitable for use with pneumatic tools at temperatures from -40°C to +70°C?

Yes. The Polyurethane Spiral Air Hose UBCS – Durable & Flexible Solution is suitable for use with pneumatic tools at temperatures from -40°C to +70°C. Its blue PUR construction and spiral reinforcement ensure flexibility and mechanical strength across that temperature range, while resistance to abrasion, tearing and kinking, a Shore hardness of 98° (A), and working pressure up to 15 bar make it appropriate for demanding pneumatic applications in workshops, industrial systems, robots and hand tools.

Can the Polyurethane Spiral Air Hose UBCS – Durable & Flexible Solution withstand repeated heavy-duty abrasion and tearing in industrial robot applications?

Yes. The Polyurethane Spiral Air Hose UBCS – Durable & Flexible Solution is specifically engineered for heavy-duty industrial use and can withstand repeated abrasion and tearing in robotic applications. Its spiral-reinforced construction and premium PUR material provide exceptional resistance to wear, cutting and tearing, while a Shore hardness of 98° (A) guarantees high mechanical strength. The hose’s superior flexibility prevents kinking and reduces stress concentrations during continuous motion, and its rated working pressure up to 15 bar suits demanding pneumatic systems. Extended temperature range (−40°C to +70°C) ensures consistent performance under varying operating conditions. Together, these features deliver reliable, long-lasting performance for industrial robots exposed to repetitive abrasion and mechanical strain.

Polyurethane Spiral Air Hose UBCS – Durable & Flexible Solution

All products, Pneumatic hoses/

Additional information

Material	B – brass (bronze)
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	no
Standard length [m]	50

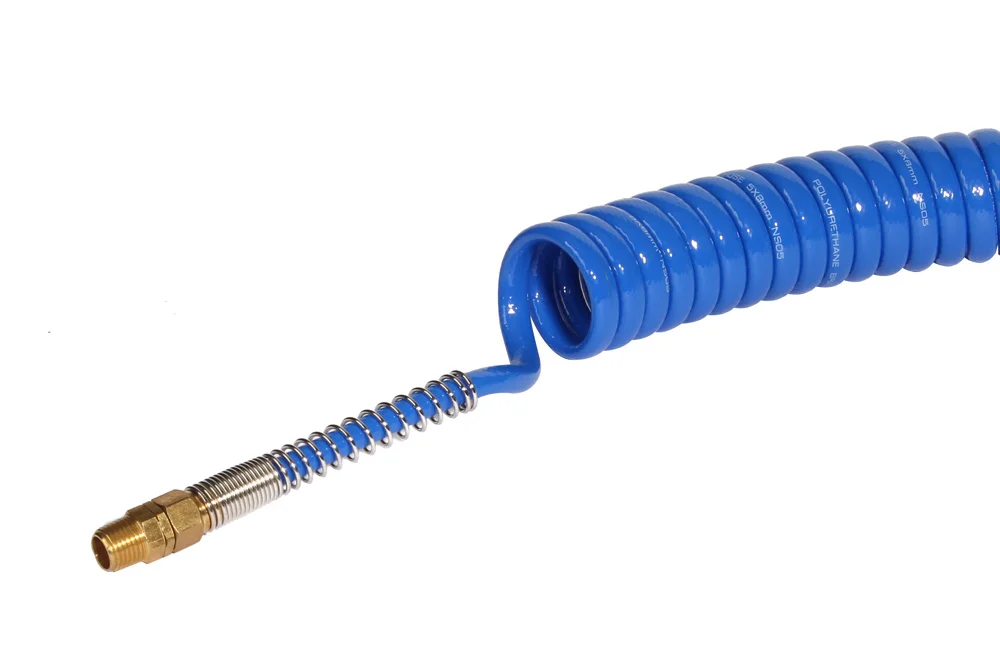

This highly durable spiral reinforced hose, crafted from premium blue polyurethane (PUR), is engineered to deliver exceptional performance in demanding environments such as automotive workshops, pneumatic control systems, industrial robots, and hand tools. Its outstanding flexibility, combined with superior resistance to abrasion, tearing, and kinking, ensures long-lasting reliability even under intensive use. Designed for maximum efficiency, the hose features straight sections of 100 mm and 500 mm at both ends, equipped with external BSPT threaded fittings for quick and secure connections. With a Shore hardness of 98° (A), it guarantees excellent mechanical strength, while its working pressure capacity of up to 15 bar makes it suitable for a wide range of professional applications. The hose maintains consistent performance across extreme temperatures, from -40°C to +70°C, and its total length corresponds to the maximum stretch, providing optimal reach and flexibility. This solution combines durability, safety, and convenience, making it an indispensable component for modern industrial and workshop operations.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
SH-UBCS-08-020	UBCS spiral hose 8x5 mm, L = 2 m with GZ 1/4"	5	15
SH-UBCS-08-050	UBCS spiral hose 8x5 mm, L = 5 m with GZ 1/4"	5	15
SH-UBCS-08-075	UBCS spiral hose 8x5 mm, L = 7.5 m with GZ 1/4"	5	15
SH-UBCS-08-100	UBCS spiral hose 8x5 mm, L = 10 m with GZ 1/4"	5	15
SH-UBCS-10-020	Spiral hose UBCS 10x6.5 mm, L = 2 m with GZ 1/4"	6	15
SH-UBCS-10-050	UBCS spiral hose 10x6.5 mm, L = 5 m with GZ 1/4"	6	15
SH-UBCS-10-075	UBCS spiral hose 10x6.5 mm, L = 7.5 m with GZ 1/4"	6	15
SH-UBCS-10-100	UBCS spiral hose 10x6.5 mm, L = 10 m with GZ 1/4"	6	15
SH-UBCS-12-020	UBCS spiral hose 12x8 mm, L = 2 m with GZ 3/8"	8	15
SH-UBCS-12-050	UBCS spiral hose 12x8 mm, L = 5 m with GZ 3/8"	8	15
SH-UBCS-12-075	UBCS spiral hose 12x8 mm, L = 7.5 m with GZ 3/8"	8	15
SH-UBCS-12-100	UBCS spiral hose 12x8 mm, L = 10 m with GZ 3/8"	8	15
SH-UBCS-15-020	UBCS spiral hose 15x10 mm, L = 2 m with GZ 3/8"	10	15
SH-UBCS-15-050	UBCS spiral hose 15x10 mm, L = 5 m with GZ 3/8"	10	15
SH-UBCS-15-075	UBCS spiral hose 15x10 mm, L = 7.5 m with GZ 3/8"	10	15
SH-UBCS-15-100	UBCS spiral hose 15x10 mm, L = 10 m with GZ 3/8"	10	15
SH-UBCS-16-020	UBCS spiral hose 16x11 mm, L = 2 m with GZ 1/2"	10	15
SH-UBCS-16-050	UBCS spiral hose 16x11 mm, L = 5 m with GZ 1/2"	10	15
SH-UBCS-16-075	UBCS spiral hose 16x11 mm, L = 7.5 m with GZ 1/2"	10	15
SH-UBCS-16-100	UBCS spiral hose 16x11 mm, L = 10 m with GZ 1/2"	10	15

This highly durable spiral reinforced hose, crafted from premium blue polyurethane (PUR), is engineered to deliver exceptional performance in demanding environments such as automotive workshops, pneumatic control systems, industrial robots, and hand tools. Its outstanding flexibility, combined with superior resistance to abrasion, tearing, and kinking, ensures long-lasting reliability even under intensive use. Designed for maximum efficiency, the hose features straight sections of 100 mm and 500 mm at both ends, equipped with external BSPT threaded fittings for quick and secure connections. With a Shore hardness of 98° (A), it guarantees excellent mechanical strength, while its working pressure capacity of up to 15 bar makes it suitable for a wide range of professional applications. The hose maintains consistent performance across extreme temperatures, from -40°C to +70°C, and its total length corresponds to the maximum stretch, providing optimal reach and flexibility. This solution combines durability, safety, and convenience, making it an indispensable component for modern industrial and workshop operations.
