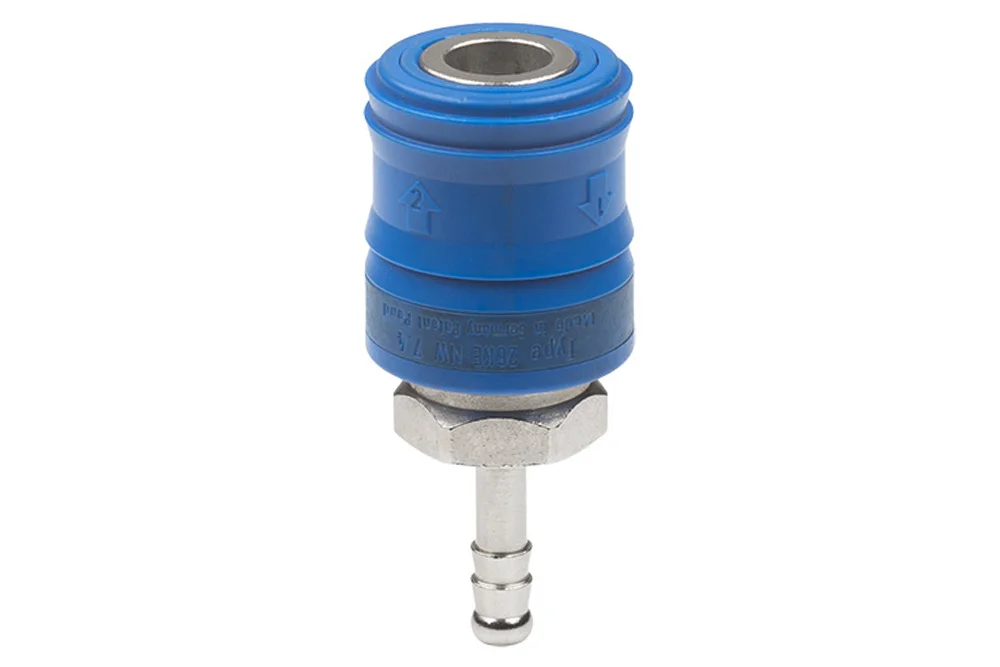

Socket quick coupling DN7.4 Eurostandard with valve, with fitting for hose, brass nickel-plated, series 26KE

Additional information

Material

CS – steel (cast iron)

Socket quick coupling o popular profile Eurostandard DN7.4 with valve, with end for hose, intended primarily for air. socket specially designed for safe, pressureless disconnecting quick coupling, compliant with ISO 4414 and EN 983. to such functionality was guaranteed, should use only plugs Rectus, of steel hardened type 25KA. Not use for direct connection tools pneumatic, because vibrations and oscillations will shorten service life coupling. flow capacity: 1300 l/min, Pe = 6 bar, Δp=0.5 bar – air. Working pressure: 12 bar. Material: brass nickel-plated (body, part threaded), brass (valve), steel AISI 301 (spring), steel AISI 420 (pins and pins locking). sealing: NBR. Operating temperature: od -20°C up to +60°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-26KETF06MPNQuick coupling socket 26KE DN7.4, for 6 mm hose, brass nickel-plated, NBR612In stock0 €
Enquiry
RE-26KETF08MPNQuick coupling socket 26KE DN7.4, for 8 mm hose, brass nickel-plated, NBR812In stock0 €
Enquiry
RE-26KETF09MPNQuick coupling socket 26KE DN7.4, for 9 mm hose, brass nickel-plated, NBR812In stock0 €
Enquiry
RE-26KETF10MPNQuick coupling socket 26KE DN7.4, for 10 mm hose, brass nickel-plated, NBR1012In stock0 €
Enquiry
RE-26KETF13MPNQuick coupling socket 26KE DN7.4, for 13 mm hose, brass nickel-plated, NBR1212In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling o popular profile Eurostandard DN7.4 with valve, with end for hose, intended primarily for air. socket specially designed for safe, pressureless disconnecting quick coupling, compliant with ISO 4414 and EN 983. to such functionality was guaranteed, should use only plugs Rectus, of steel hardened type 25KA. Not use for direct connection tools pneumatic, because vibrations and oscillations will shorten service life coupling. flow capacity: 1300 l/min, Pe = 6 bar, Δp=0.5 bar – air. Working pressure: 12 bar. Material: brass nickel-plated (body, part threaded), brass (valve), steel AISI 301 (spring), steel AISI 420 (pins and pins locking). sealing: NBR. Operating temperature: od -20°C up to +60°C.

Additional information

Material

CS – steel (cast iron)
