Does the Adjustable 90° Pressure Gauge Connector, Female Thread with Test Port, Male M16x2 support pressures up to 630 bar and NBR sealing for -30°C to +120°C operation?

Yes. The Adjustable 90° Pressure Gauge Connector, Female Thread with Test Port, Male M16x2 supports pressures up to 630 bar and uses NBR sealing rated for operation from -30°C to +120°C.

Is the Adjustable 90° Pressure Gauge Connector, Female Thread with Test Port, Male M16x2 available with an integrated pressure surge damper for added instrument protection?

Yes. The Adjustable 90° Pressure Gauge Connector, Female Thread with Test Port, Male M16x2 Format is available in two versions: one with free flow and one with an integrated pressure surge damper for added instrument protection. The damper-equipped version provides enhanced protection for sensitive instruments while retaining the connector’s reliability, corrosion-resistant zinc-nickel coated steel construction, NBR sealing, up to 630 bar working pressure, and -30°C to +120°C operating range.

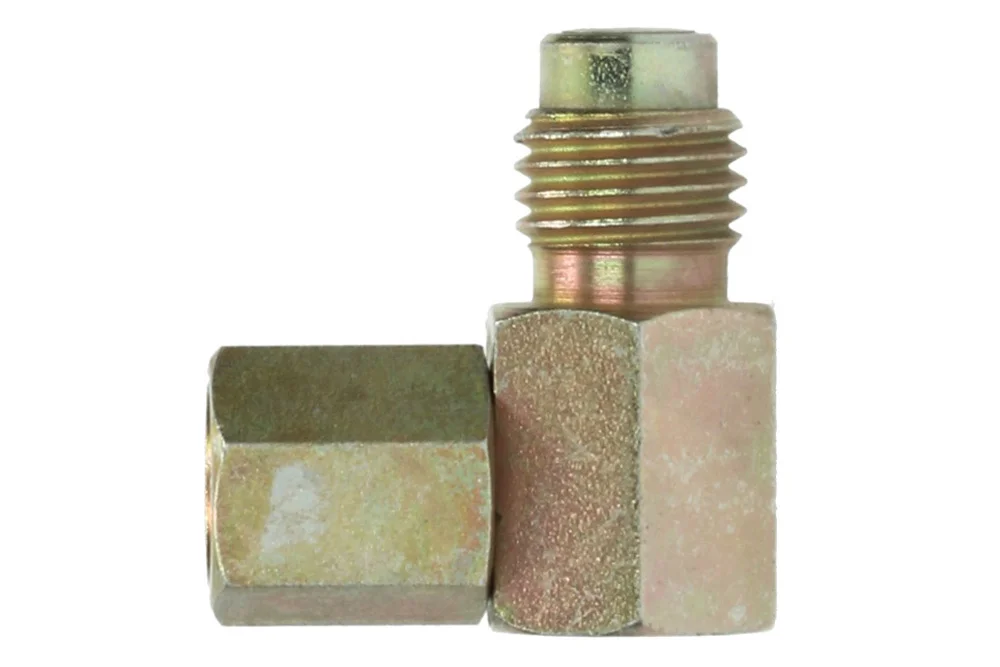

Adjustable 90° Pressure Gauge Connector, Female Thread with Test Port, Male M16x2

All products, Measurement couplings/

Additional information

Material	CS – steel (cast iron)

The 90° pressure gauge connection with internal BSP inch thread is designed for maximum reliability and versatility, meeting ISO 15171-2 standards and featuring an external M16x2 thread on the measuring tip side. Available in two versions – with free flow or with an integrated pressure surge damper – it ensures precise measurement and optimal protection of sensitive instruments. Manufactured from high-quality steel with a durable zinc-nickel coating, the coupling offers excellent resistance to wear and corrosion, even in demanding industrial environments. With a working pressure of up to 630 bar, NBR sealing, and an operating temperature range from -30°C to +120°C, it guarantees long-lasting performance and safety under extreme conditions. This robust solution is ideal for applications requiring secure connections, reliable pressure monitoring, and enhanced durability, making it a trusted choice for professionals seeking efficiency and confidence in every operation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PS-620-10-204-00	Connection to manometer, angled 90° GZ M16x2, connection GW 1/4" BSP	-	630	In stock	Enquiry
PS-620-10-204-00-1	Connection to manometer, angled 90° GZ M16x2, connection GW 1/4" BSP, with damper.	-	630	In stock	Enquiry
PS-620-10-208-00	Connection to angular manometer 90° GZ M16x2, connection GW 1/2" BSP	-	630	In stock	Enquiry
PS-620-10-208-00-1	Connection to manometer, angled 90° GZ M16x2, connection GW 1/2" BSP, with silencer	-	630	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° pressure gauge connection with internal BSP inch thread is designed for maximum reliability and versatility, meeting ISO 15171-2 standards and featuring an external M16x2 thread on the measuring tip side. Available in two versions – with free flow or with an integrated pressure surge damper – it ensures precise measurement and optimal protection of sensitive instruments. Manufactured from high-quality steel with a durable zinc-nickel coating, the coupling offers excellent resistance to wear and corrosion, even in demanding industrial environments. With a working pressure of up to 630 bar, NBR sealing, and an operating temperature range from -30°C to +120°C, it guarantees long-lasting performance and safety under extreme conditions. This robust solution is ideal for applications requiring secure connections, reliable pressure monitoring, and enhanced durability, making it a trusted choice for professionals seeking efficiency and confidence in every operation.
