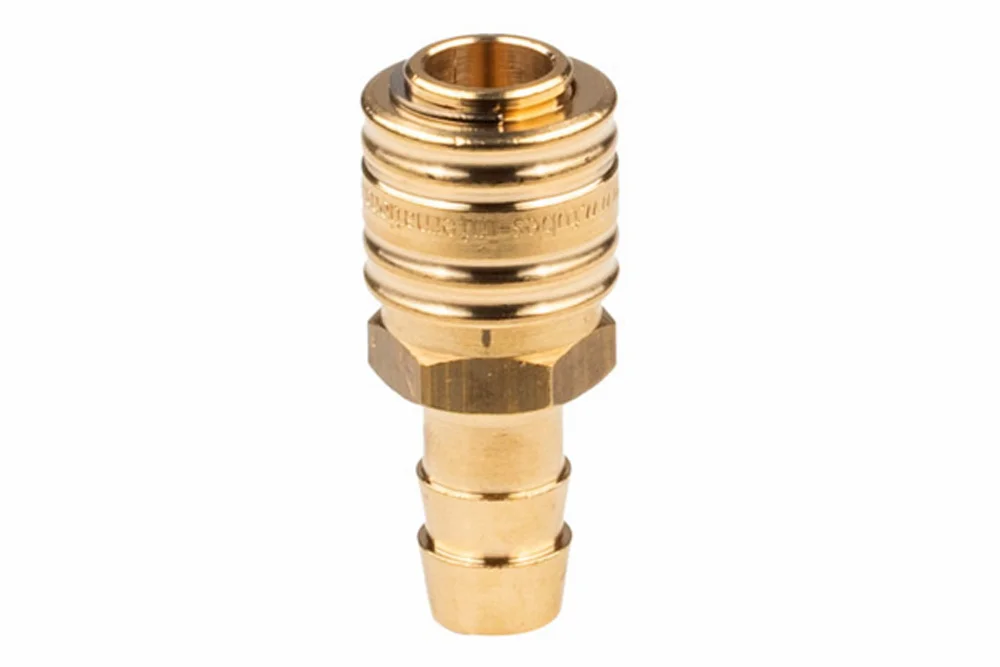

Socket quick coupling for air DN7.2 Eurostandard with valve, with fitting for hose, 16 bar

Additional information

Material

B – brass (bronze)

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8 and compatible with tools encountered in shops. operated easily takes place using one hand for pressure 8 bar. Working pressure: 16 bar. Material: brass (pins and spring of steel stainless). Flow rate: 1631 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TP-ES72-GK-06XQuick coupling socket DN7.2, for 6 mm hose, brass616In stock0 €
Enquiry
TP-ES72-GK-08XQuick coupling socket DN7.2, for 8 mm hose, brass816In stock0 €
Enquiry
TP-ES72-GK-09XQuick coupling socket DN7.2, for 9 mm hose, brass816In stock0 €
Enquiry
TP-ES72-GK-10XQuick coupling socket DN7.2, for 10 mm hose, brass1016In stock0 €
Enquiry
TP-ES72-GK-13XQuick coupling socket DN7.2, for 13 mm hose, brass1216In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8 and compatible with tools encountered in shops. operated easily takes place using one hand for pressure 8 bar. Working pressure: 16 bar. Material: brass (pins and spring of steel stainless). Flow rate: 1631 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: od -20°C up to +100°C.

Additional information

Material

B – brass (bronze)
