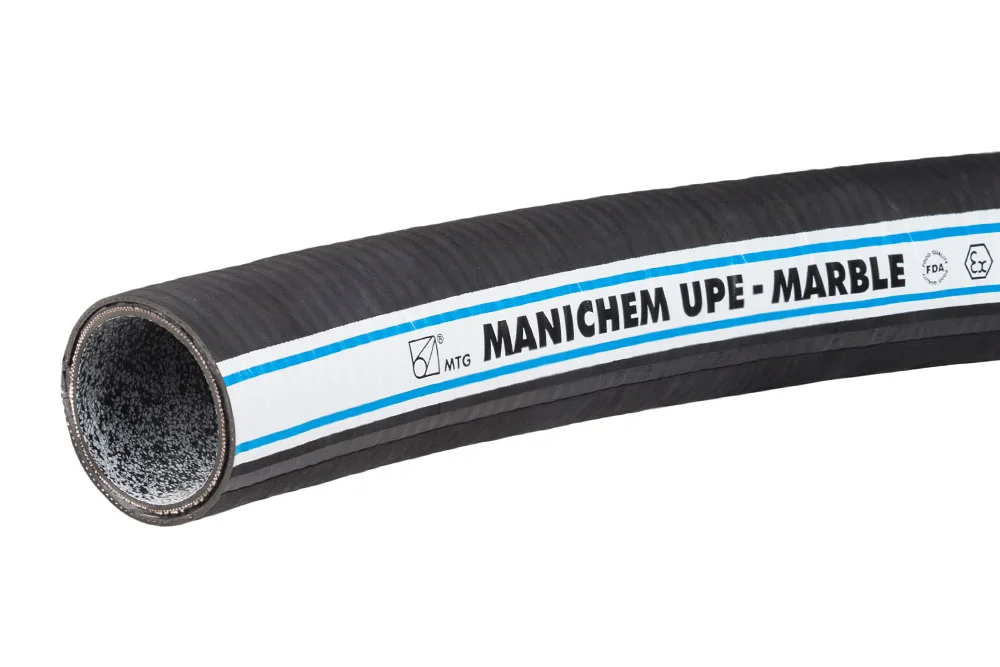

Anti-Static Acid & Alkali Hose – MANICHEM MARBLE

Additional information

Material

UPE – polyethylene UPE

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-35

Vacuum resistance

yes

Standard length [m]

10, 20, 40, 60/ 120

Reinforcement

steel spiral, synthetic cover

This high-performance suction and discharge hose is engineered with a smooth, antistatic inner layer made of ultra-high molecular weight polyethylene (UPE, UHMWPE) in a distinctive black-and-white MARBLE design, ensuring exceptional resistance to acids, bases, and a wide range of aggressive chemicals, even at elevated temperatures. Its low-friction surface prevents product buildup, simplifies cleaning, and meets strict food-contact regulations, making it ideal not only for chemical and petrochemical applications but also for use in the cosmetic, pharmaceutical, and food industries. Reinforced with a durable synthetic cord and steel spiral, the hose guarantees strength and flexibility, while the outer layer of EPDM rubber provides outstanding resistance to abrasion, ozone, weather conditions, and chemicals. Fully compliant with EN 12115:2011 (type Ω/T) and ATEX directives, it ensures safe dissipation of electrostatic charges, allowing reliable operation in all explosion hazard zones. With a working pressure range of 12–16 bar (depending on diameter) and an operating temperature span from -35°C to +100°C, this hose delivers maximum safety, durability, and versatility. For installation, smooth fittings with precisely matched diameters are recommended to maintain tightness and protect the UPE lining, ensuring long-lasting performance in demanding industrial environments.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MT-MANICHEM-M-006MANICHEM MARBLE hose 6x16 mm616In stock
Enquiry
MT-MANICHEM-M-008MANICHEM MARBLE hose 8x20 mm816In stock
Enquiry
MT-MANICHEM-M-010MANICHEM MARBLE hose 10x20 mm1016In stock
Enquiry
MT-MANICHEM-M-013MANICHEM MARBLE hose 13x23 mm1216In stock
Enquiry
MT-MANICHEM-M-016MANICHEM MARBLE hose 16x28 mm1616In stock
Enquiry
MT-MANICHEM-M-019MANICHEM MARBLE hose 19x31 mm2016In stock
Enquiry
MT-MANICHEM-M-025MANICHEM MARBLE hose 25x37 mm2516In stock
Enquiry
MT-MANICHEM-M-032MANICHEM MARBLE hose 32x44 mm3216In stock
Enquiry
MT-MANICHEM-M-038MANICHEM MARBLE hose 38x51 mm3816In stock
Enquiry
MT-MANICHEM-M-050MANICHEM MARBLE hose 50x66 mm5016In stock
Enquiry
MT-MANICHEM-M-065MANICHEM MARBLE hose 63.5x79.5 mm6516In stock
Enquiry
MT-MANICHEM-M-075MANICHEM MARBLE hose 75x91 mm7516In stock
Enquiry
MT-MANICHEM-M-100MANICHEM MARBLE hose 100x118 mm10016In stock
Enquiry
MT-MANICHEM-M-125MANICHEM MARBLE hose 125x146 mm12512In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This high-performance suction and discharge hose is engineered with a smooth, antistatic inner layer made of ultra-high molecular weight polyethylene (UPE, UHMWPE) in a distinctive black-and-white MARBLE design, ensuring exceptional resistance to acids, bases, and a wide range of aggressive chemicals, even at elevated temperatures. Its low-friction surface prevents product buildup, simplifies cleaning, and meets strict food-contact regulations, making it ideal not only for chemical and petrochemical applications but also for use in the cosmetic, pharmaceutical, and food industries. Reinforced with a durable synthetic cord and steel spiral, the hose guarantees strength and flexibility, while the outer layer of EPDM rubber provides outstanding resistance to abrasion, ozone, weather conditions, and chemicals. Fully compliant with EN 12115:2011 (type Ω/T) and ATEX directives, it ensures safe dissipation of electrostatic charges, allowing reliable operation in all explosion hazard zones. With a working pressure range of 12–16 bar (depending on diameter) and an operating temperature span from -35°C to +100°C, this hose delivers maximum safety, durability, and versatility. For installation, smooth fittings with precisely matched diameters are recommended to maintain tightness and protect the UPE lining, ensuring long-lasting performance in demanding industrial environments.

Additional information

Material

UPE – polyethylene UPE

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-35

Vacuum resistance

yes

Standard length [m]

10, 20, 40, 60/ 120

Reinforcement

steel spiral, synthetic cover
