Is the Double-Sided Quick-Connect Plug, Brass, BSP Female, Series 25 DN 7.4 compatible with both gases and liquids at 35 bar and -20°C to +100°C?

Yes. The Double-Sided Quick-Connect Plug, Brass, BSP Female, Series 25 DN 7.4 is rated for a working pressure up to 35 bar and a temperature range of −20°C to +100°C (specified “depending on the medium”). Its brass construction, NBR seals and AISI 301 spring make it suitable for both gases and liquids in demanding applications (laboratory equipment, liquid and gas sampling, pneumatic tools). Ensure compatibility with your specific fluid or gas (chemistry, vapour pressure, additives) and verify NBR seal compatibility at the extremes of the temperature range; for aggressive media or temperatures near limits, consult the manufacturer for confirmation or alternative seals.

Can the Double-Sided Quick-Connect Plug, Brass, BSP Female, Series 25 DN 7.4 be used for continuous sampling of corrosive gases or liquids given its brass and NBR construction?

No. The Double-Sided Quick-Connect Plug, Brass, BSP Female, Series 25 DN 7.4 is constructed from brass with NBR (nitrile) sealing elements. Both materials have limited chemical resistance: brass (a copper–zinc alloy) can corrode or suffer dezincification when exposed to many corrosive gases and liquids (acidic, chloride-containing, ammonia, hydrogen sulfide, etc.), and NBR is vulnerable to strong oxidizers, aromatics, ketones, some chlorinated solvents and certain acids/alkalis. The product description highlights durability and suitability for laboratory sampling and many gases/ liquids, but it does not claim compatibility with corrosive media or continuous exposure to aggressive chemicals. If you need continuous sampling of corrosive substances, choose couplings made from corrosion-resistant materials (e.g., stainless steels like 316/316L, Hastelloy, Monel, or non-metallic materials compatible with the specific chemical) and elastomers rated for the medium (e.g., FKM/Viton, EPDM, PTFE). Always consult chemical compatibility charts and the manufacturer’s guidance for the specific media, concentration, temperature and exposure duration before using the Double-Sided Quick-Connect Plug, Brass, BSP Female, Series 25 DN 7.4 for corrosive sampling.

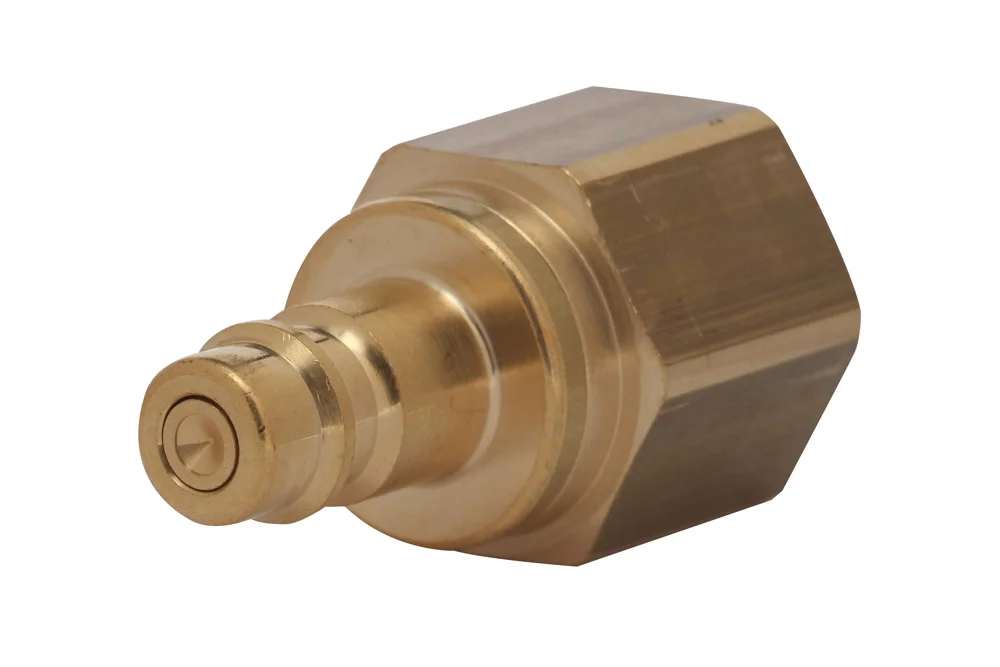

Plug quick coupling double shut-off with a female BSP thread, brass, series 25KB DN 7.4

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

Plug quick coupling double shut-off series 25 DN 7.4 with thread internal BSP, characterized by strong design, ensuring ideal tightness and very high factor flow thanks to use valve ULTRA-FLO. Application: equipment laboratories, sampling samples liquids and gases, tools pneumatic. Working pressure: 35 bar. flow capacity: 780 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: brass (plug, part threaded plug), brass (valve), steel AISI 301 (spring). sealing: NBR. Operating temperature: od -20°C up to +100°C, depending on medium.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-25SBIW13MPX	Quick coupling plug type 25 DN 7.4 double shut-off with 1/4" BSP female, brass	-	35	In stock	Enquiry
RE-25SBIW17MPX	Quick coupling plug 25SB DN7.4, 3/8" BSP female, brass, NBR	-	35	In stock	Enquiry
RE-25SBIW21MPX	Quick coupling plug type 25 DN 7.4 double shut-off with 1/2" BSP female, brass	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Plug quick coupling double shut-off series 25 DN 7.4 with thread internal BSP, characterized by strong design, ensuring ideal tightness and very high factor flow thanks to use valve ULTRA-FLO. Application: equipment laboratories, sampling samples liquids and gases, tools pneumatic. Working pressure: 35 bar. flow capacity: 780 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: brass (plug, part threaded plug), brass (valve), steel AISI 301 (spring). sealing: NBR. Operating temperature: od -20°C up to +100°C, depending on medium.
