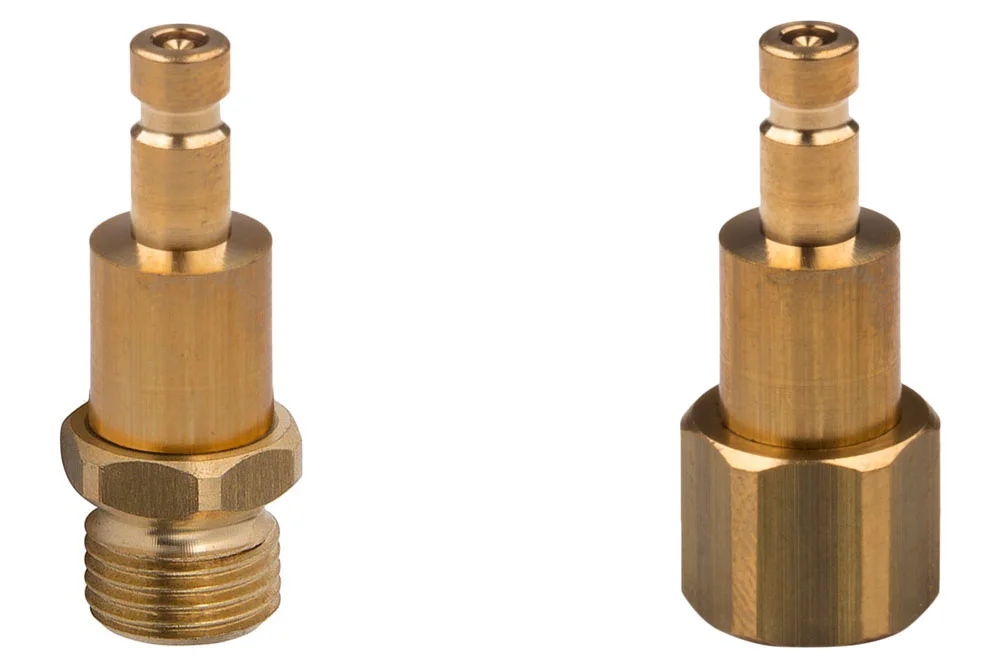

Plug quick coupling double shut-off DN2.7 with valve, with thread, brass, series 20KA

Additional information

Material

B – brass (bronze)

Plug quick coupling double shut-off, o very small sizes DN 2.7 series 20KA, with valve, with thread external or internal BSP or metric. intended for water, air, nitrogen and other non-flammable gases. version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. flow capacity: 165 l/min, Pe = 6 bar, Δp=0.5 bar – air, 3 l/min, Δp=1 bar, KV=0.18 – water. Working pressure: 35 bar. Material: brass, steel AISI 301 (spring and ring), steel AISI 420 (balls). sealing: NBR. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-20SBAM05MPXQuick coupling plug 20SB DN2.7, M5 male, brass, NBR-35In stock0 €
Enquiry
RE-20SBAW10MPXQuick coupling plug 20SB DN2.7, 1/8" BSP male, brass, NBR-35In stock0 €
Enquiry
RE-20SBIM05MPXQuick coupling plug 20SB DN2.7, M5 female, brass, NBR-35In stock0 €
Enquiry
RE-20SBIW10MPXQuick coupling plug 20SB DN2.7, 1/8" BSP female, brass, NBR-35In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling double shut-off, o very small sizes DN 2.7 series 20KA, with valve, with thread external or internal BSP or metric. intended for water, air, nitrogen and other non-flammable gases. version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. flow capacity: 165 l/min, Pe = 6 bar, Δp=0.5 bar – air, 3 l/min, Δp=1 bar, KV=0.18 – water. Working pressure: 35 bar. Material: brass, steel AISI 301 (spring and ring), steel AISI 420 (balls). sealing: NBR. Operating temperature: od -20°C up to +100°C.
