Can the SAE 6000 GW BSP Counter Flange, Carbon Steel, Type D6 operate reliably between -20°C and +100°C in corrosive environments?

Yes. The SAE 6000 GW BSP Counter Flange, Carbon Steel, Type D6 is specified for an operating temperature range of -20°C to +100°C and is manufactured from high‑quality carbon steel with a protective galvanized coating. These features mean it is designed to perform reliably across that temperature span and to offer enhanced corrosion resistance in challenging environments. Note that the product is supplied without mounting screws or sealing, so reliable performance in corrosive or extreme conditions also depends on correct selection and installation of compatible fasteners, seals, and system materials that match the environment and service conditions.

Is the SAE 6000 GW BSP Counter Flange, Carbon Steel, Type D6 compatible with custom sealing solutions for high-pressure hydraulic systems?

Yes — the SAE 6000 GW BSP Counter Flange, Carbon Steel, Type D6 is compatible with custom sealing solutions for high‑pressure hydraulic systems, with some caveats: - The flange is supplied without mounting screws and without a preinstalled seal, explicitly allowing tailored sealing and assembly choices to meet specific application needs. - Material and finish (carbon steel with galvanized coating) provide a robust substrate for a variety of seal types (metal gaskets, elastomeric O‑rings, PTFE, spiral wound, etc.), but seal selection must consider galvanic compatibility and chemical resistance with the zinc coating. - Operating temperature range (‑20°C to +100°C) limits elastomeric seal choices — select materials rated for both the system pressure and that temperature window (e.g., high‑temp Buna, Viton, or PTFE where appropriate). - For high‑pressure hydraulic applications ensure the chosen seal and fastening method are rated for the system’s maximum pressure, and that the flange bore, face finish and clamp design match the sealing style (face contact for gaskets, groove for O‑rings). - Verify torque specs, bolt pattern and thread engagement (internal thread design) to achieve proper compression without damaging the flange or seal. - Recommend pressure testing and, if needed, consultation with the seal manufacturer to validate compatibility and longevity under your specific fluid, temperature, and pressure conditions.

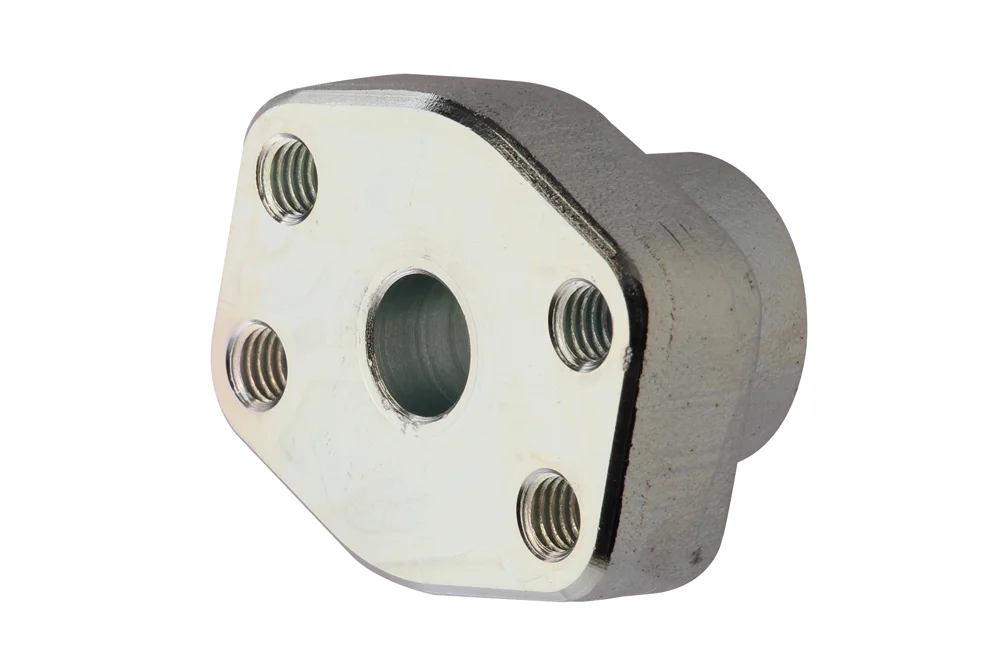

Counter-flange SAE 6000 / BSP female, steel carbon, type D6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Counter-flange SAE 6000 with thread internal for connections with a flange connection, without bolts mounting and seal. Material: steel carbon, galvanized. Operating temperature: od -20°C up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D6-BX-08-06	Counter-flange SAE 6000 1/2", 3/8" BSP female	-	420	In stock	Enquiry
HK-D6-BX-08-08	Counter-flange SAE 6000 1/2", 1/2" BSP female	-	420	In stock	Enquiry
HK-D6-BX-12-12	Counter-flange SAE 6000 3/4", 3/4" BSP female	-	420	In stock	Enquiry
HK-D6-BX-16-16	Counter-flange SAE 6000 1", 1" BSP female	-	420	In stock	Enquiry
HK-D6-BX-20-20	Counter-flange SAE 6000 1.1/4", 1.1/4" BSP female	-	420	In stock	Enquiry
HK-D6-BX-24-24	Counter-flange SAE 6000 1.1/2", 1.1/2" BSP female	-	420	In stock	Enquiry
HK-D6-BX-32-32	Counter-flange SAE 6000 2", 2" BSP female	-	420	In stock	Enquiry
HK-D6-BX-40-40	Counter-flange SAE 6000 2.1/2", 2.1/2" BSP female	-	420	In stock	Enquiry
HK-D6-BX-48-48	Counter-flange SAE 6000 3", 3" BSP female	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Counter-flange SAE 6000 with thread internal for connections with a flange connection, without bolts mounting and seal. Material: steel carbon, galvanized. Operating temperature: od -20°C up to +100°C.
