Is the 90° Elbow, BSP Female Thread, Cast Iron, Type 90/6 rated for 25 bar at +120°C and 20 bar at +300°C?

Yes. The 90° Elbow, BSP Female Thread, Cast Iron, Type 90/6 is rated for 25 bar at +120°C and 20 bar at +300°C.

Can the 90° Elbow, BSP Female Thread, Cast Iron, Type 90/6 be used with aggressive chemicals or only with water and steam systems?

The 90° Elbow, BSP Female Thread, Cast Iron, Type 90/6 is manufactured from ductile iron and rated for pressures up to 25 bar (to +120°C) and 20 bar (to +300°C), and for temperatures up to +300°C. These properties make it well suited for water and steam systems and for many general industrial applications. However, ductile iron is not universally chemically resistant: aggressive chemicals (strong acids, alkalis, oxidizers, chlorides, solvents and certain process fluids) can cause corrosion, pitting or embrittlement depending on concentration, temperature and exposure time. Therefore, use with aggressive chemicals should not be assumed safe without verification. For chemical service you must: - Check compatibility of ductile iron with the specific chemical, concentration and temperature (consult chemical resistance charts or supplier data). - Consider protective linings/coatings or alternative materials (stainless steel, special alloys, non‑metallics) if incompatibility is indicated. - Verify pressure/temperature ratings in the intended chemical environment. In summary: suitable for water and steam and many non‑aggressive fluids; for aggressive chemicals, assess compatibility case‑by‑case and select appropriate materials or protections.

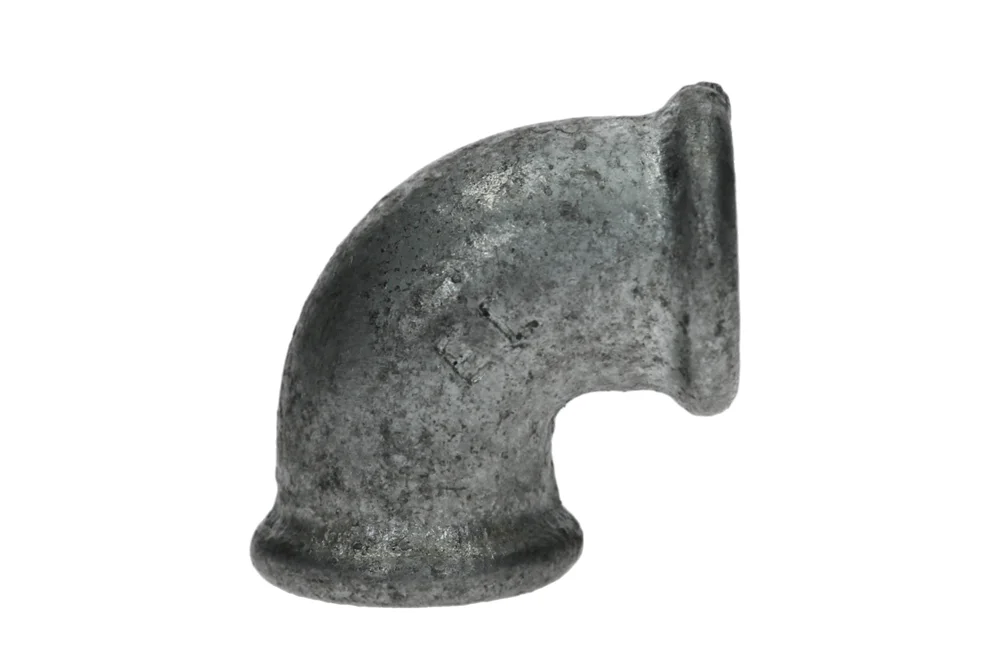

90° Elbow, BSP Female Thread, Cast Iron, Type 90/6

Additional information

Material	CS – steel (cast iron)

The 90° elbow with internal BSP thread is a robust and reliable component designed for secure and efficient piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it ensures excellent durability, resistance to mechanical stress, and long service life even under intensive operating conditions. Engineered to withstand temperatures of up to +300°C, this fitting guarantees consistent performance in both standard and high‑temperature applications. Its pressure resistance reaches 25 bar at operating temperatures up to +120°C and 20 bar at elevated temperatures up to +300°C, making it a versatile solution for a wide range of systems. The precise BSP threading allows for quick, tight, and leak‑free assembly, reducing installation time and ensuring reliable operation. With its combination of strength, safety, and adaptability, this elbow fitting is an ideal choice for industries seeking efficiency, durability, and long‑term reliability in their piping networks.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-906-04	90° elbow with GW / GW BSP 1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-06	90° elbow with GW / GW BSP 3/8", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-08	90° elbow with GW / GW BSP 1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-12	90° elbow with GW / GW BSP 3/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-16	90° elbow with GW / GW BSP 1", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-20	90° elbow with GW / GW BSP 1.1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-24	90° elbow with GW / GW BSP 1.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-32	90° elbow with GW / GW BSP 2", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-40	90° elbow with GW / GW BSP 2.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-48	90° elbow with GW / GW BSP 3", galvanized cast iron.	-	25	In stock	Enquiry
EE-906-64	90° elbow with GW / GW BSP 4", galvanized cast iron.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° elbow with internal BSP thread is a robust and reliable component designed for secure and efficient piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it ensures excellent durability, resistance to mechanical stress, and long service life even under intensive operating conditions. Engineered to withstand temperatures of up to +300°C, this fitting guarantees consistent performance in both standard and high‑temperature applications. Its pressure resistance reaches 25 bar at operating temperatures up to +120°C and 20 bar at elevated temperatures up to +300°C, making it a versatile solution for a wide range of systems. The precise BSP threading allows for quick, tight, and leak‑free assembly, reducing installation time and ensuring reliable operation. With its combination of strength, safety, and adaptability, this elbow fitting is an ideal choice for industries seeking efficiency, durability, and long‑term reliability in their piping networks.
