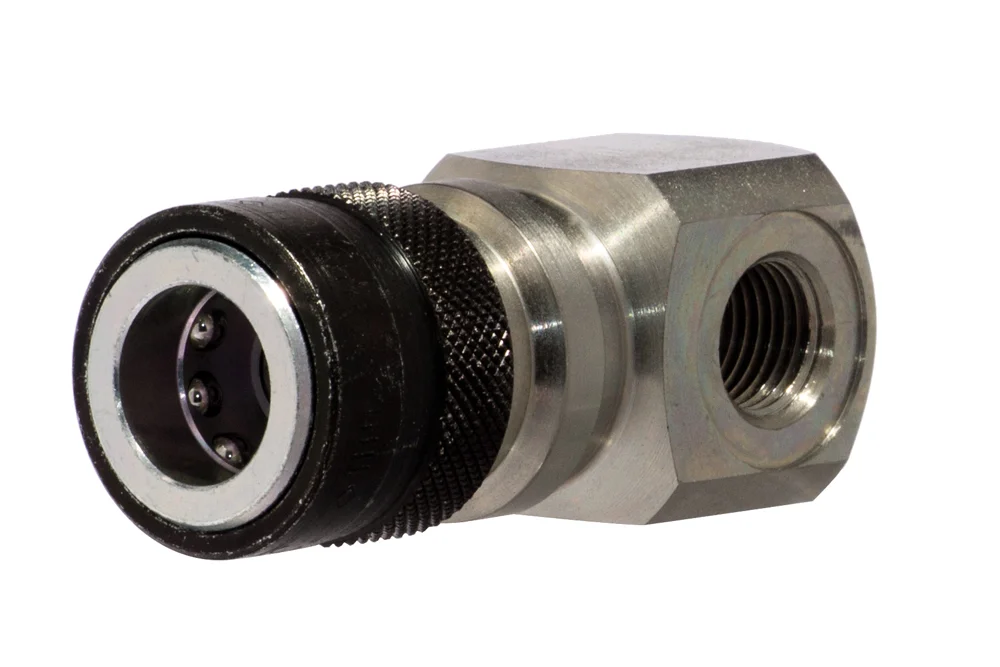

Socket quick coupling CEJN 116 with female thread under angle 90° with valve, hardened steel
Socket quick coupling CEJN 116 with thread internal, for connection under angle 90° and with valve intended for installation hydraulic o very high pressures. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. ideal solution in small rooms. optionally socket can be equipped in ring securing against accidental disconnection. supplied standard with a cap in order to protection against contaminants. Material: hardened steel, galvanized. sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Diameter nominal: 2.5 mm. Working pressure: 1500 bar (coupling connected). pressure bursting: 3000 bar. Operating temperature: od -30°C up to +100°C.
Do you need a larger quantity of products or a bespoke quote?
Socket quick coupling CEJN 116 with thread internal, for connection under angle 90° and with valve intended for installation hydraulic o very high pressures. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. ideal solution in small rooms. optionally socket can be equipped in ring securing against accidental disconnection. supplied standard with a cap in order to protection against contaminants. Material: hardened steel, galvanized. sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Diameter nominal: 2.5 mm. Working pressure: 1500 bar (coupling connected). pressure bursting: 3000 bar. Operating temperature: od -30°C up to +100°C.
Additional information
| Material | CS – steel (cast iron) |
|---|
