What are the maximum inlet pressure and temperature limits for the Compressed Air Reducing Valve REG 100-200-300, No End Plates, SKILLAIR® Series?

Compressed Air Reducing Valve REG 100-200-300, No End Plates, SKILLAIR® Series — Maximum inlet pressure and temperature limits: - Maximum inlet pressure: up to 15 bar for sizes 100 and 200; 13 bar for size 300. - Maximum operating temperature: +50°C.

Can the Compressed Air Reducing Valve REG 100-200-300, No End Plates, SKILLAIR® Series be fitted with alternative thread types or adapters instead of BSP female connections?

Compressed Air Reducing Valve REG 100-200-300, No End Plates, SKILLAIR® Series is supplied with BSP female thread connections (1/4" to 1") and a BSP 1/8" gauge port as standard. The product description does not state availability of alternative thread types. If you require different threads (NPT, metric, etc.), common practice is to use suitable adapters or replacement end fittings, but compatibility depends on thread sealing method, pressure rating (up to 15 bar / 13 bar for size 300) and available space. Before fitting adapters, confirm with the manufacturer or supplier that: 1) the adapter material and sealing method are rated for the valve’s maximum pressure and operating temperature (up to +50°C); 2) the adapter preserves flow performance and does not introduce unacceptable pressure drop; 3) mechanical stress and mounting dimensions remain safe. For a guaranteed solution, request factory options or certified adapters from the manufacturer or an authorized distributor.

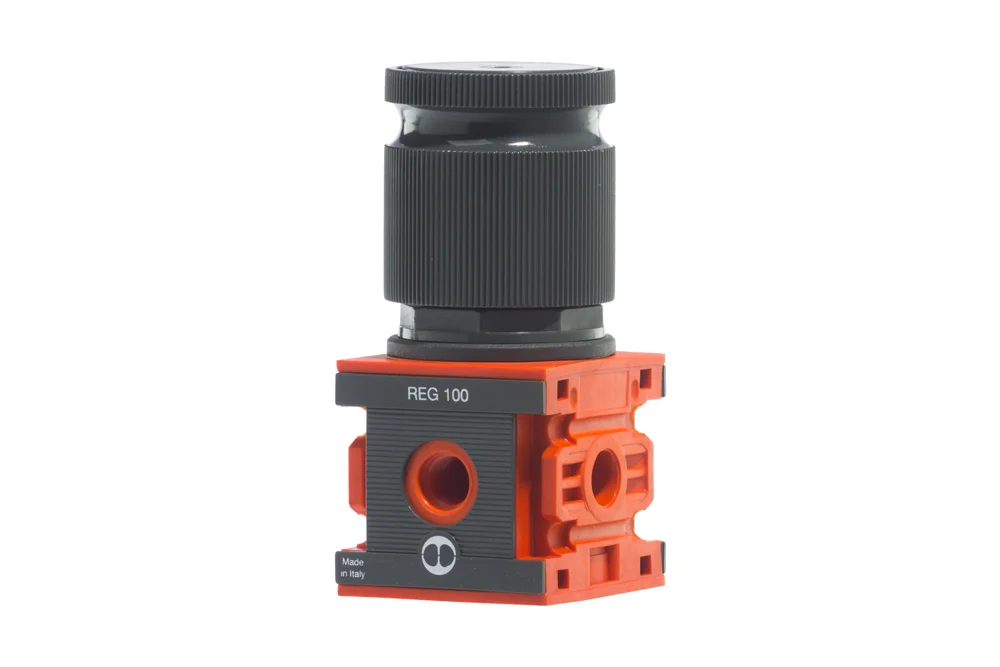

Compressed Air Reducing Valve REG 100-200-300, No End Plates, SKILLAIR® Series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	2

The REG pressure reducing valve from the SKILLAIR® series, designed without end plates, ensures stable regulation of working pressure and reliable performance of pneumatic systems. Available in sizes 100, 200, and 300, it offers output pressure ranges of 0–2, 0–4, 0–8, and 0–12 bar, with a supply pressure capacity of up to 15 bar (13 bar for series 300). Engineered for operating temperatures up to +50°C, the valve features BSP female thread connections from 1/4″ to 1″ and a BSP 1/8″ port for pressure gauge installation. Delivering impressive flow rates of 1600 l/min for size 100, 3500 l/min for size 200, and 7000 l/min for size 300 (at 6 bar input pressure with Δp = 1 bar), it guarantees efficiency and precision in demanding applications. This robust solution combines durability with high performance, making it an ideal choice for industries seeking optimal pressure control and energy savings.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3202001A	REG 100 02 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3202002A	REG 100 04 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3202003A	REG 100 08 (SKILLAIR) pressure reducing valve without end plates.	-	-	In stock	Enquiry
MW-3202004A	REG 100 012 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3402001A	REG 200 02 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3402002A	REG 200 04 (SKILLAIR) pressure reducing valve without end plates.	-	-	In stock	Enquiry
MW-3402003A	REG 200 08 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3402004A	REG 200 012 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-4402000A	REG 300 02 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-4402001A	REG 300 04 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-4402002A	REG 300 08 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-4402003A	REG 300 012 pressure reducing valve (SKILLAIR) without end plates.	-	-	In stock	Enquiry
