Is the DIN 3016 Rubber P-Clip Mounting Clamp, 15 mm Strap, Carbon Steel suitable for outdoor use in wet and saline environments?

DIN 3016 Rubber P-Clip Mounting Clamp, 15 mm Strap, Carbon Steel is suitable for outdoor use in wet and saline environments with some caveats. The clamp's galvanized carbon steel (W1) strip and EPDM rubber lining provide strong resistance to water, abrasion, temperature changes and aging—properties that make it well suited for outdoor and wet conditions. The integrated rubber cushioning also protects against corrosion-induced wear and reduces vibration. However, "W1" galvanization offers basic corrosion protection; in highly saline or marine environments (constant salt spray, splash zones, or prolonged exposure), galvanization alone may not provide long-term rust resistance compared with stainless steel or higher-grade coatings. For heavy or continuous salt exposure, choose a stainless steel variant or a specially coated clamp to ensure optimal durability. Summary: Suitable for general outdoor and wet use; for severe saline/marine conditions, prefer stainless steel or enhanced corrosion protection.

Does the DIN 3016 Rubber P-Clip Mounting Clamp, 15 mm Strap, Carbon Steel require specific fasteners or torque settings for optimal performance?

DIN 3016 Rubber P-Clip Mounting Clamp, 15 mm Strap, Carbon Steel does not include screws, washers or nuts and therefore requires selection of appropriate fasteners and correct tightening to ensure optimal performance. Recommended practices: - Fastener type: use corrosion-resistant screws/nuts compatible with galvanized carbon steel and the application environment (stainless steel or zinc-plated fasteners are common). Choose head style (hex, pan, or carriage) that fits installation access and prevents loosening. - Diameter and length: match the hole size in the clamp’s reinforced end plates and ensure sufficient thread engagement in the mounting substrate or nut. Typical choices are M5–M8 range depending on load and substrate; confirm hole dimension from the specific part drawing. - Washer use: use a flat washer under the screw head or nut to distribute load and protect the clamp’s end plate; use a spring/lock washer or a locking fastener (Nylock, threadlocker) where vibration resistance is critical. - Torque settings: follow fastener manufacturer torque specs for the chosen thread size and material. As a general guideline (subject to fastener grade and size): - M5: ~4–6 Nm - M6: ~7–10 Nm - M8: ~18–22 Nm Reduce torque if fastening into softer substrates or thin-sheet metal to avoid crushing the rubber or deforming the clamp. Stop tightening when clamp seats flat and rubber is compressed but not extruded. - Vibration protection: where heavy vibration occurs, prefer locking hardware, controlled torque, and periodic inspection/re-torque. For final specification, verify hole dimensions and material thickness from the clamp datasheet and select fastener grade and exact torque per fastener manufacturer and application engineering requirements.

DIN 3016 Rubber P-Clip Mounting Clamp, 15 mm Strap, Carbon Steel

Additional information

Material	CS – steel (cast iron)
Standard length [m]	60

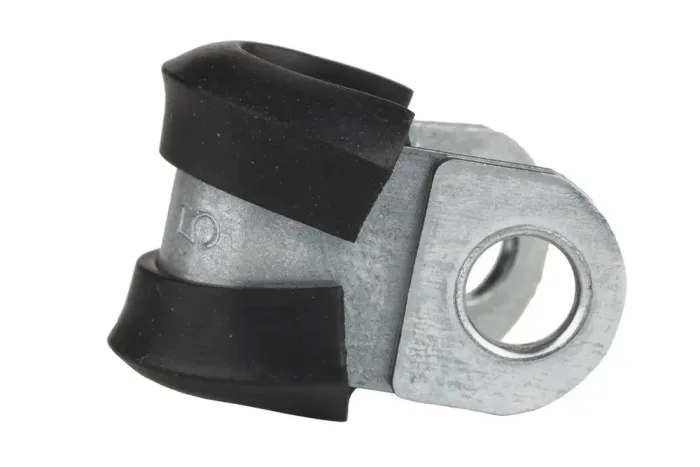

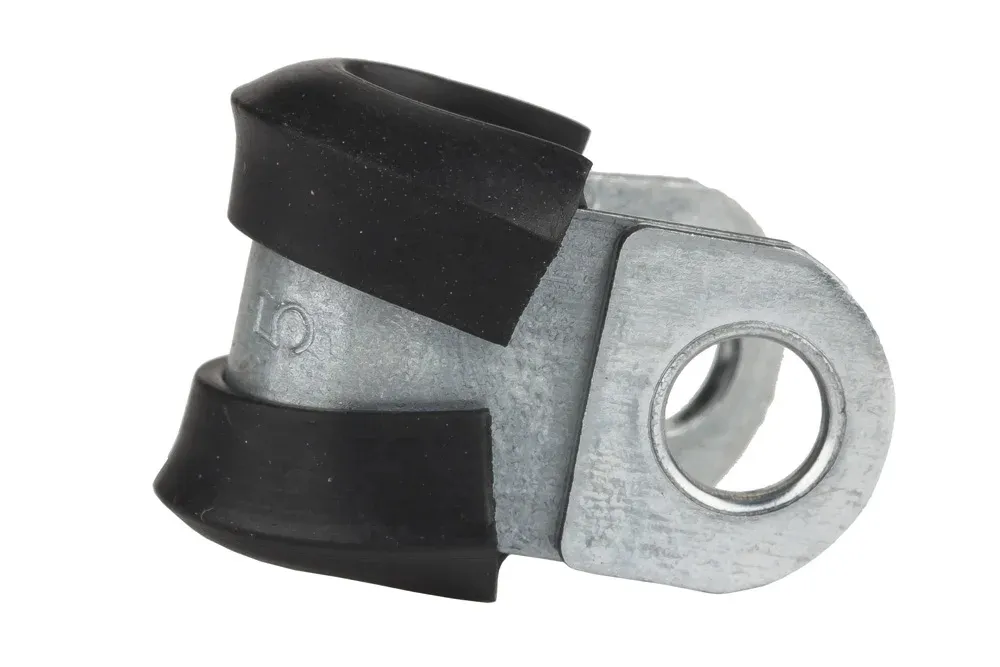

The RUBBER P-CLIP clamp, manufactured in compliance with DIN 3016, is a reliable solution designed to ensure secure and vibration-dampened mounting of pipes, hoses, hose bundles, and corrugated electrical conduits in demanding environments. Engineered from a single piece of galvanized carbon steel strip (W1) combined with a durable EPDM rubber profile, it offers exceptional resistance to water, abrasion, temperature fluctuations, and aging, guaranteeing long-lasting performance even under intensive use. Reinforced steel plates at both ends of the strip provide superior strength and prevent deformation under heavy mechanical loads, making the clamp ideal for applications where safety and durability are critical. With a 15 mm strip width, this versatile component is widely used across industries such as agriculture, construction machinery, automotive and engine manufacturing, railway systems, electrical installations, and household appliances. The integrated rubber lining not only protects mounted elements from wear and damage but also minimizes noise and vibration, ensuring smooth operation of equipment. Designed for professional use, the clamp is delivered without screw, washer, or nut, allowing flexibility in assembly according to specific requirements. Its robust construction and universal application make it a trusted choice for engineers and technicians seeking a high-quality fastening solution that combines strength, protection, and reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03004656	RUBBER P-CLIP clamp 5 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004664	RUBBER P-CLIP clamp 6 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004680	RUBBER P-CLIP clamp 8 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004701	RUBBER P-CLIP clamp 10 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004710	RUBBER P-CLIP clamp 11 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004728	RUBBER P-CLIP clamp 12 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004736	RUBBER P-CLIP clamp 13 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004744	RUBBER P-CLIP clamp 14 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004752	RUBBER P-CLIP clamp 15 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004760	RUBBER P-CLIP clamp 16 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004779	RUBBER P-CLIP clamp 17 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004787	RUBBER P-CLIP clamp 18 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004795	RUBBER P-CLIP clamp 19 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004808	RUBBER P-CLIP clamp 20 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004816	RUBBER P-CLIP clamp 21 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004824	RUBBER P-CLIP clamp 22 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004832	RUBBER P-CLIP clamp 23 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004859	RUBBER P-CLIP clamp 25 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004867	RUBBER P-CLIP clamp 26 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004883	RUBBER P-CLIP clamp 28 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004904	RUBBER P-CLIP clamp 30 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004920	RUBBER P-CLIP clamp 32 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004939	RUBBER P-CLIP clamp 33 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004947	RUBBER P-CLIP clamp 34 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004955	RUBBER P-CLIP clamp 35 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004963	RUBBER P-CLIP clamp 36 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004971	RUBBER P-CLIP clamp 37 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03004980	RUBBER P-CLIP clamp 38 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005000	RUBBER P-CLIP clamp 40 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005034	RUBBER P-CLIP clamp 43 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005050	RUBBER P-CLIP clamp 45 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005077	RUBBER P-CLIP clamp 47 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005106	RUBBER P-CLIP clamp 50 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005122	RUBBER P-CLIP clamp 52 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005165	RUBBER P-CLIP clamp 56 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005202	RUBBER P-CLIP clamp 60 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005253	RUBBER P-CLIP clamp 65 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005341	RUBBER P-CLIP clamp 74 mm, width 15 mm, W1	-	-	In stock	Enquiry
AB-03005405	RUBBER P-CLIP clamp 80 mm, width 15 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The RUBBER P-CLIP clamp, manufactured in compliance with DIN 3016, is a reliable solution designed to ensure secure and vibration-dampened mounting of pipes, hoses, hose bundles, and corrugated electrical conduits in demanding environments. Engineered from a single piece of galvanized carbon steel strip (W1) combined with a durable EPDM rubber profile, it offers exceptional resistance to water, abrasion, temperature fluctuations, and aging, guaranteeing long-lasting performance even under intensive use. Reinforced steel plates at both ends of the strip provide superior strength and prevent deformation under heavy mechanical loads, making the clamp ideal for applications where safety and durability are critical. With a 15 mm strip width, this versatile component is widely used across industries such as agriculture, construction machinery, automotive and engine manufacturing, railway systems, electrical installations, and household appliances. The integrated rubber lining not only protects mounted elements from wear and damage but also minimizes noise and vibration, ensuring smooth operation of equipment. Designed for professional use, the clamp is delivered without screw, washer, or nut, allowing flexibility in assembly according to specific requirements. Its robust construction and universal application make it a trusted choice for engineers and technicians seeking a high-quality fastening solution that combines strength, protection, and reliability.
