Is the DYROS Series 90 Quick-Connect Socket with Valve for GW Injection Molds compatible with standard BSP hoses and fittings?

Yes. The DYROS Series 90 Quick-Connect Socket with Valve for GW Injection Molds Format features an internal BSP thread and is specifically engineered to mate with standard BSP hoses and fittings. Its brass construction, stainless-steel internal components and Viton seals ensure a durable, leak-resistant connection suitable for cooling circuits, compressed air and other industrial applications up to 15 bar.

Can the DYROS Series 90 Quick-Connect Socket with Valve for GW Injection Molds be used with hydraulic fluids other than water and compressed air?

Yes — the DYROS Series 90 Quick-Connect Socket with Valve for GW Injection Molds can be used with hydraulic fluids beyond water and compressed air, with some qualifications. Its brass body, stainless-steel internal parts, and high-performance Viton seals offer strong chemical and temperature resistance, making it compatible with many hydraulic oils and glycol-based coolants commonly used in industrial cooling circuits. However, compatibility depends on the specific fluid chemistry, temperature range, and operating pressure (up to 15 bar). Avoid fluids containing aggressive additives or solvents that attack brass or Viton (e.g., some strong acids, ketones, or chlorinated hydrocarbons). For a definitive answer, verify the fluid’s compatibility with brass and Viton, confirm operating temperature/pressure stay within the coupling’s limits, and consult the fluid and component manufacturers if uncertain.

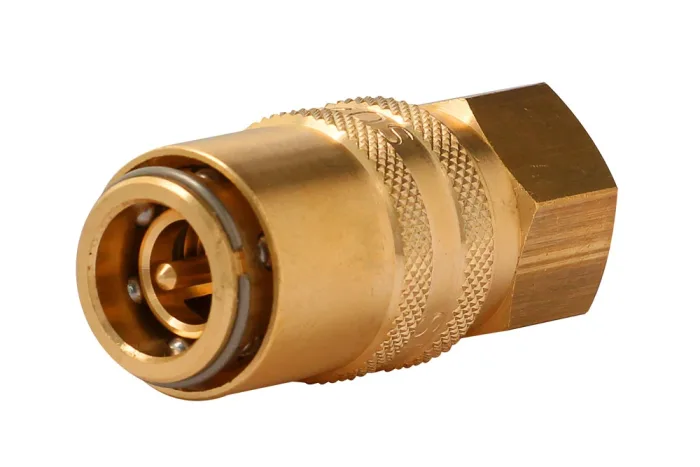

Socket quick coupling for moulds injection with female thread with valve, DYROS series 90

Additional information

Material	B – brass (bronze)

Socket quick coupling DYROS series 90 with thread internal BSP and a shut-off valve. intended for liquids cooling molds in processing plastics, installation compressed air, cylinders with technical gases and other fields of technology. Material: all element made are with brass, whereas rings supporting, spring and balls with treated steel stainless. sealing: Viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-LKR912	Socket DN 9 with 1/2" BSP female, with a valve	-	15	In stock	Enquiry
DY-LKR914	Socket DN 9 with 1/4" BSP female, with a valve	-	15	In stock	Enquiry
DY-LKR938	Socket DN 9 with 3/8" BSP female, with a valve	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket quick coupling DYROS series 90 with thread internal BSP and a shut-off valve. intended for liquids cooling molds in processing plastics, installation compressed air, cylinders with technical gases and other fields of technology. Material: all element made are with brass, whereas rings supporting, spring and balls with treated steel stainless. sealing: Viton. Working pressure: 15 bar.
