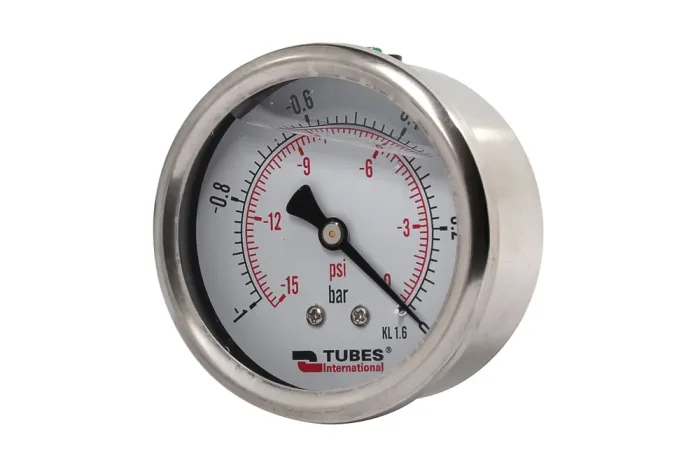

Pressure gauge 63 mm glycerine with connection rear, FM 632
A universal pressure gauge industrial 63 mm with connection rear FM 632, produced in accordance with the standard EN 837-1 in housing of steel stainless with filling glycerine. pressure gauge resistant is on shocks, vibration, moisture, o elevated resistance to sudden rises pressure, intended for straight measurements pressure liquids o low viscosity, vapours and gases, not operating corrosion on alloys copper and not crystallising. filling pressure gauge glycerine promotes reduction fluctuations indicator and reduction wear parts moving mechanism at pulsations pressure and vibration. also prevents condensation and formation atmosphere corrosion inside pressure gauge, which could damage parts internal. range measuring should select appropriate for pressure use, tak to pressure fixed or slowly changing not exceed 75% range; pressure pulsating not exceed 60% range and pulses pressure not exceeded maximum range. Diameter disc: 63 mm. Material: housing – steel AISI 304, sight glass – plexiglas, Connection – brass, mechanism – brass and alloys copper, filling – glycerine. Class accuracy: 1.6. temperature ambient: od -40°C up to +65°C. temperature medium: maximum +60°C. Connection rear: 1/4″ BSP male (G 1/4 B, EN ISO 228-1, B means tolerance thread).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
A universal pressure gauge industrial 63 mm with connection rear FM 632, produced in accordance with the standard EN 837-1 in housing of steel stainless with filling glycerine. pressure gauge resistant is on shocks, vibration, moisture, o elevated resistance to sudden rises pressure, intended for straight measurements pressure liquids o low viscosity, vapours and gases, not operating corrosion on alloys copper and not crystallising. filling pressure gauge glycerine promotes reduction fluctuations indicator and reduction wear parts moving mechanism at pulsations pressure and vibration. also prevents condensation and formation atmosphere corrosion inside pressure gauge, which could damage parts internal. range measuring should select appropriate for pressure use, tak to pressure fixed or slowly changing not exceed 75% range; pressure pulsating not exceed 60% range and pulses pressure not exceeded maximum range. Diameter disc: 63 mm. Material: housing – steel AISI 304, sight glass – plexiglas, Connection – brass, mechanism – brass and alloys copper, filling – glycerine. Class accuracy: 1.6. temperature ambient: od -40°C up to +65°C. temperature medium: maximum +60°C. Connection rear: 1/4″ BSP male (G 1/4 B, EN ISO 228-1, B means tolerance thread).
Additional information
| Maximum operating temperature [°C] | 60 |
|---|
