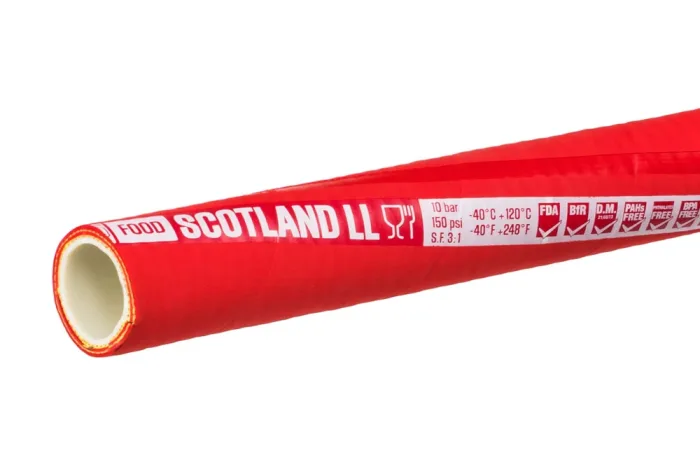

SCOTLAND LL BE® Suction & Discharge Hose for High‑Strength Alcohols
This premium suction and discharge hose is engineered for the safe and efficient transfer of wine, beer, fruit juices, and other fat-free food products, ensuring absolute purity thanks to its odorless and tasteless rubber composition. Free from phthalates and bisphenol A, it is the ideal solution for wineries, breweries, and distilleries, perfectly suited for handling high-quality wines, spirits, and strong alcohols with concentrations up to 96%. Its integrated copper wires guarantee electrical continuity between hose ends, providing enhanced safety when transferring flammable liquids, while the durable outer layer offers exceptional resistance to abrasion, aging, and adverse weather conditions. Built with a white butyl rubber inner layer, reinforced with synthetic cord and steel spiral, and finished with a robust red butyl rubber cover, it delivers outstanding performance under demanding conditions. With a working pressure of 10 bar, vacuum resistance of 0.9 bar, and an impressive operating temperature range from -40°C to +120°C, this hose ensures reliability and durability in every application. Fully compliant with international food contact standards including 1935/2004/EC, 2023/2006/EC (GMP), FDA 21 CFR 177.2600, BfR XXI cat.2, and D.M. 21/03/73, it guarantees maximum safety and quality, making it the trusted choice for professionals in the food and beverage industry.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-SCOT-LL-BE-019 | Hose SCOTLAND/LL BE 19x32 mm | 20 | 10 | |
| IV-SCOT-LL-BE-025 | Hose SCOTLAND/LL BE 25x38 mm | 25 | 10 | |
| IV-SCOT-LL-BE-032 | Hose SCOTLAND/LL BE 32x46 mm | 32 | 10 | |
| IV-SCOT-LL-BE-038 | Hose SCOTLAND/LL BE 38x52 mm | 38 | 10 | |
| IV-SCOT-LL-BE-051 | Hose SCOTLAND/LL BE 51x65 mm | 50 | 10 | |
| IV-SCOT-LL-BE-063 | Hose SCOTLAND/LL BE 63.5x80 mm | 65 | 10 | |
| IV-SCOT-LL-BE-076 | Hose SCOTLAND/LL BE 76x93 mm | 75 | 10 | |
| IV-SCOT-LL-BE-102 | Hose SCOTLAND/LL BE 102x120 mm | 100 | 10 |
This premium suction and discharge hose is engineered for the safe and efficient transfer of wine, beer, fruit juices, and other fat-free food products, ensuring absolute purity thanks to its odorless and tasteless rubber composition. Free from phthalates and bisphenol A, it is the ideal solution for wineries, breweries, and distilleries, perfectly suited for handling high-quality wines, spirits, and strong alcohols with concentrations up to 96%. Its integrated copper wires guarantee electrical continuity between hose ends, providing enhanced safety when transferring flammable liquids, while the durable outer layer offers exceptional resistance to abrasion, aging, and adverse weather conditions. Built with a white butyl rubber inner layer, reinforced with synthetic cord and steel spiral, and finished with a robust red butyl rubber cover, it delivers outstanding performance under demanding conditions. With a working pressure of 10 bar, vacuum resistance of 0.9 bar, and an impressive operating temperature range from -40°C to +120°C, this hose ensures reliability and durability in every application. Fully compliant with international food contact standards including 1935/2004/EC, 2023/2006/EC (GMP), FDA 21 CFR 177.2600, BfR XXI cat.2, and D.M. 21/03/73, it guarantees maximum safety and quality, making it the trusted choice for professionals in the food and beverage industry.
Additional information
| Material | IIR – butyl rubber |
|---|---|
| Maximum operating temperature [°C] | 120 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 60 |
| Reinforcement | steel spiral, synthetic cover |
