Is the Electrically Operated 4/2 Hydraulic Spool Valve, NG6 compatible with 12 V DC, 24 V DC, 110 V AC, and 220 V AC control voltages?

Electrically Operated 4/2 Hydraulic Spool Valve, NG6 — Yes. The valve is offered with a wide selection of control voltages and is compatible with 12 V DC, 24 V DC, 110 V AC, and 220 V AC, allowing flexible integration into diverse electrical systems. An integrated LED indicator provides clear power-status feedback for each configuration.

Does the Electrically Operated 4/2 Hydraulic Spool Valve, NG6 include an integrated LED indicator to show power status for improved operational safety?

Electrically Operated 4/2 Hydraulic Spool Valve, NG6: Yes. The product description explicitly states that an integrated LED indicator is provided to show power status, improving operational safety and control.

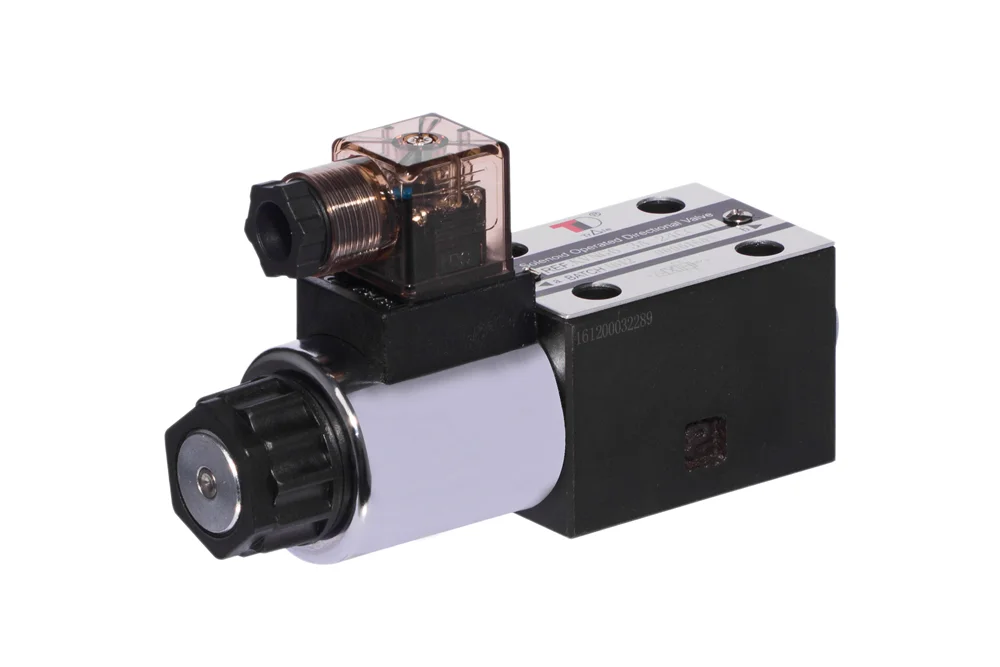

Directional valve hydraulic spool Controlled electrically, type 4/2, NG6

All products, Valves and plate adapters/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-20

Directional valve spool, type 4/2, Controlled electrically of centering springs intended for mounting plate. used in systems hydraulic machine industrial. standard supplied with o-rings and screws mounting. A connector equipped is in diode signalling state supply. Material: cast iron (body), hardened steel (spool). sealing: NBR. maximum Working pressure: 315 bar (channels P,A,B), 160 bar (channel T). available on the following voltage control: 12 V DC, 24 V DC, 110 V AC or 220 V AC. Operating temperature: od -20°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TL-NG6-A-24DC	Directional valve hydraulic NG6, type 3/2, control 24V DC	-	315	In stock	Enquiry
TL-NG6-D-12DC	Directional valve hydraulic NG6, type 4/2, control 12V DC	-	315	In stock	Enquiry
TL-NG6-D-220AC	Directional valve hydraulic NG6, type 4/2, control 220V AC	-	315	In stock	Enquiry
TL-NG6-D-24DC	Directional valve hydraulic NG6, type 4/2, control 24V DC	-	315	In stock	Enquiry
TL-NG6-HA-24DC	Directional valve hydraulic NG6, type 4/2, control 24V DC	-	315	In stock	Enquiry
TL-NG6-HB-24DC	Directional valve hydraulic NG6, type 4/2, control 24V DC	-	315	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Directional valve spool, type 4/2, Controlled electrically of centering springs intended for mounting plate. used in systems hydraulic machine industrial. standard supplied with o-rings and screws mounting. A connector equipped is in diode signalling state supply. Material: cast iron (body), hardened steel (spool). sealing: NBR. maximum Working pressure: 315 bar (channels P,A,B), 160 bar (channel T). available on the following voltage control: 12 V DC, 24 V DC, 110 V AC or 220 V AC. Operating temperature: od -20°C up to +80°C.
