Is the Steel Plate Adapter for NG6 Valve Connection compatible with included O-rings or are seals supplied separately?

The Steel Plate Adapter for NG6 Valve Connection is delivered without O-rings; seals are not included and must be supplied separately to match your system’s sealing requirements.

Does the Steel Plate Adapter for NG6 Valve Connection require specific O-ring sizes or materials to match NG10 valve or block installations?

The Steel Plate Adapter for NG6 Valve Connection does not include O-rings and therefore requires that you select appropriate O-ring sizes and materials to match NG10 valve or block installations. You should use O-rings sized to fit the specific groove and sealing faces of the NG6-to-NG10 interface or the connection plate in your system. Material selection should be based on operating conditions: for general hydraulic fluids and the adapter’s temperature range (–20°C to +80°C operating, ambient –20°C to +50°C), nitrile (NBR) is common; for wider temperature or fluid compatibility, consider FKM/Viton or HNBR. Ensure O-rings meet pressure and chemical compatibility requirements for up to 315 bar and 40 l/min flow. Verify dimensions and groove specifications from the NG6/NG10 valve or block manufacturer to choose the correct cross-section and hardness (shore) for reliable sealing.

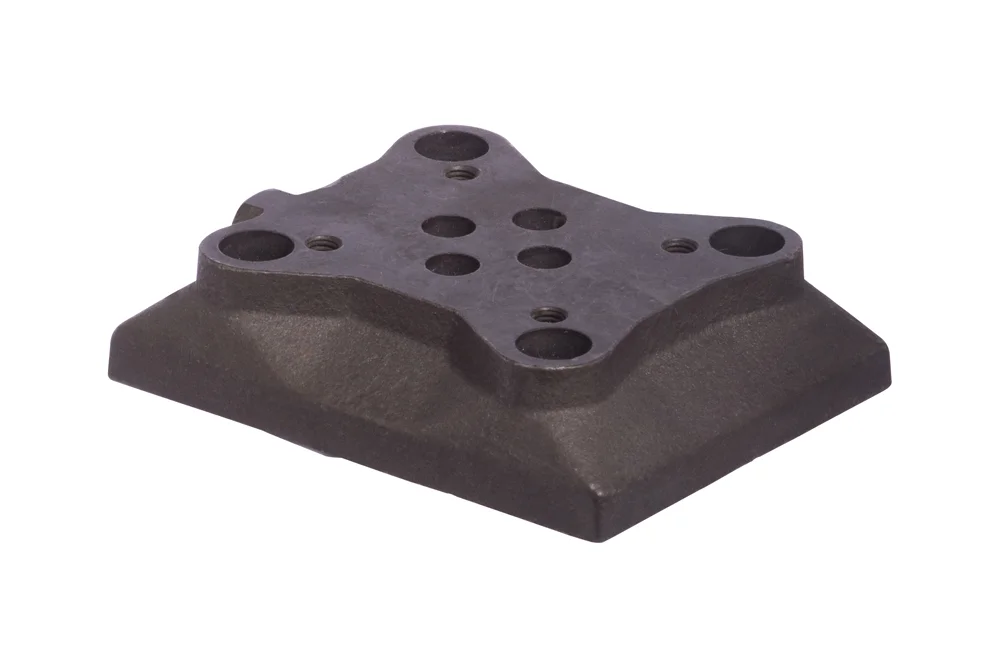

Adapter plate for connecting valves NG6, steel

All products, Valves and plate adapters/

Additional information

Material	CS – steel (cast iron)

Adapter plate intended for connecting valve (the directional valve) NG6 with plate connection (block connection) or valve NG10. supplied without O-rings. Material: steel. maximum Working pressure: 315 bar. Flow rate: 40 l/min. Operating temperature: od -20°C up to +80°C (medium), od -20°C up to +50°C (ambient).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TL-PNG10-6	Reducing adapter NG6 / NG10	-	315	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Adapter plate intended for connecting valve (the directional valve) NG6 with plate connection (block connection) or valve NG10. supplied without O-rings. Material: steel. maximum Working pressure: 315 bar. Flow rate: 40 l/min. Operating temperature: od -20°C up to +80°C (medium), od -20°C up to +50°C (ambient).
