Teflon Hose with AISI 304 Steel Braid & EPDM Protection – HYPERLINE FX

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

140

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid

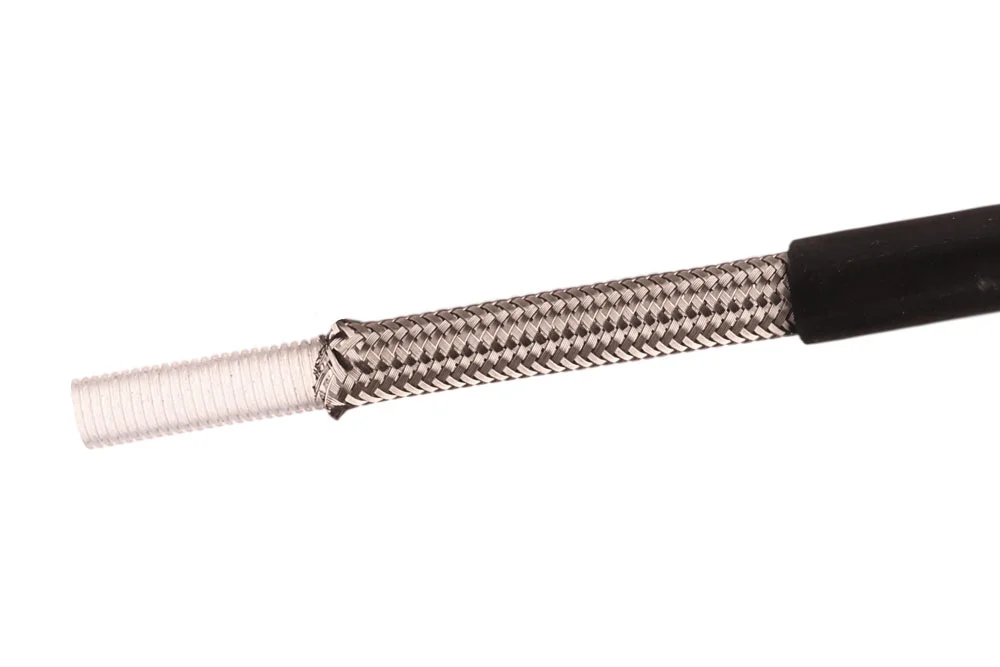

The Hyperline FX SS RC BLACK hose is a high-performance solution designed for demanding industrial and mechanical applications, where durability, safety, and flexibility are essential. Constructed with a smooth inner layer and a corrugated PTFE (Teflon) outer surface, it ensures excellent flow characteristics while maintaining outstanding resistance to chemicals and high temperatures. Reinforced with a robust single braid of AISI 304 stainless steel and protected by an additional black EPDM rubber layer, the hose offers superior resistance to abrasion, mechanical damage, and external factors. The EPDM cover is both antistatic and flame-retardant, fully compliant with EN 45545 standards for railway vehicles, making it a reliable choice in environments where safety regulations are critical. Its lightweight and flexible design allows for easy installation and maintenance, while the smooth surface of the protective layer simplifies cleaning, ensuring long-lasting performance. With a working pressure range from 50 to 110 bar, depending on diameter, and an operating temperature span from -40°C to +140°C, the Hyperline FX SS RC BLACK hose delivers exceptional versatility across a wide spectrum of applications. Available either as a standalone hose or as complete assemblies ready for immediate installation, it provides a tailored solution that combines technical excellence with practical convenience, ensuring maximum efficiency and reliability in operation.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
AF-FXSS-06-RC-BK-EN45545HYPERLINE FX 1/4" hose, steel braid, black EPDM EN45545-110
AF-FXSS-10-RC-BK-EN45545HYPERLINE FX 3/8" hose, steel braid, black EPDM EN45545-100
AF-FXSS-13-RC-BK-EN45545HYPERLINE FX 1/2" hose, steel braid, black EPDM EN45545-75
AF-FXSS-16-RC-BK-EN45545HYPERLINE FX 5/8" hose, steel braid, black EPDM EN45545-62
AF-FXSS-19-RC-BK-EN45545HYPERLINE FX 3/4" hose, steel braid, black EPDM EN45545-52
AF-FXSS-25-RC-BK-EN45545HYPERLINE FX 1" hose, steel braid, black EPDM EN45545-50

The Hyperline FX SS RC BLACK hose is a high-performance solution designed for demanding industrial and mechanical applications, where durability, safety, and flexibility are essential. Constructed with a smooth inner layer and a corrugated PTFE (Teflon) outer surface, it ensures excellent flow characteristics while maintaining outstanding resistance to chemicals and high temperatures. Reinforced with a robust single braid of AISI 304 stainless steel and protected by an additional black EPDM rubber layer, the hose offers superior resistance to abrasion, mechanical damage, and external factors. The EPDM cover is both antistatic and flame-retardant, fully compliant with EN 45545 standards for railway vehicles, making it a reliable choice in environments where safety regulations are critical. Its lightweight and flexible design allows for easy installation and maintenance, while the smooth surface of the protective layer simplifies cleaning, ensuring long-lasting performance. With a working pressure range from 50 to 110 bar, depending on diameter, and an operating temperature span from -40°C to +140°C, the Hyperline FX SS RC BLACK hose delivers exceptional versatility across a wide spectrum of applications. Available either as a standalone hose or as complete assemblies ready for immediate installation, it provides a tailored solution that combines technical excellence with practical convenience, ensuring maximum efficiency and reliability in operation.

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

140

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid
