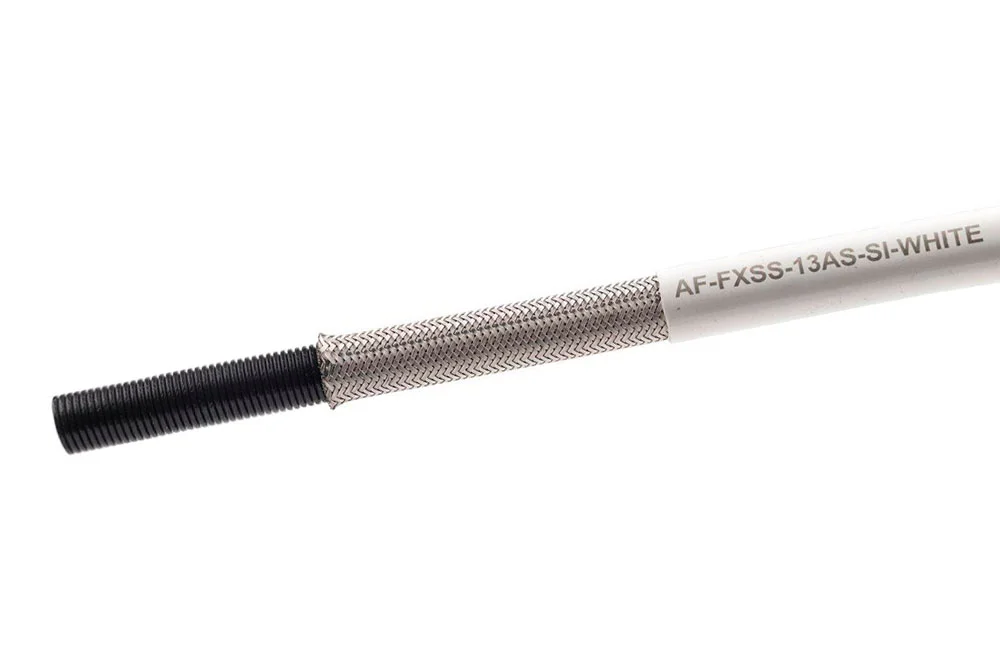

Hose PTFE antistatic in braid steel AISI 304 and layer protective with rubber silicone, HYPERLINE FX

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

204

Minimum operating temperature [°C]

-70

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid

Hose Hyperline FX SS AS SI WHITE to Light, flexible hose PTFE. Due to its properties recommended is for conveying hot media, applications CIP. hose can be delivered with meter, as and in the molds complete lines. Layer outer in the molds white silicone facilitates maintaining purity. such solution protects also the operator against burn. high resistance layer internal on long-term action steam water. at temperature use above +160°C maximum pressure working given in data technical should reduced o 1% on each 1°C above tej temperatures. for example at temperature 180°C maximum pressure working for hose AF-FXSS-10 is: 100 bar – (180°C-160°C) x 1 = 100 bar – 20% = 80 bar. the given in data value vacuum, defined is for temperatures use up to 150°C. hose standard is in version antistatic, Available also in version with natural PTFE. Hose material: inside smooth, externally Serrated, antistatic PTFE (teflon). Reinforcement: single braid of steel AISI 304 with additional layer protective with white rubber silicone. Working pressure: from 50 bar to 110 bar – depending on the diameter hose. Operating temperature: od -70°C up to +204°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
AF-FXSS-06AS-SI-WHITEHose HYPERLINE FX 1/4" AS, A braid steel, white silicone6110In stock0 €
Enquiry
AF-FXSS-08AS-SI-WHITEHose HYPERLINE FX 5/16" AS, A braid steel, white silicone8105In stock0 €
Enquiry
AF-FXSS-10AS-SI-WHITEHose HYPERLINE FX 3/8" AS, A braid steel, white silicone10100In stock0 €
Enquiry
AF-FXSS-13AS-SI-WHITEHose HYPERLINE FX 1/2" AS, A braid steel, white silicone1275In stock0 €
Enquiry
AF-FXSS-16AS-SI-WHITEHose HYPERLINE FX 5/8" AS, A braid steel, white silicone1662In stock0 €
Enquiry
AF-FXSS-19AS-SI-WHITEHose HYPERLINE FX 3/4" AS, A braid steel, white silicone2052In stock0 €
Enquiry
AF-FXSS-25AS-SI-WHITEHose HYPERLINE FX 1" AS, A braid steel, white silicone2550In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Hose Hyperline FX SS AS SI WHITE to Light, flexible hose PTFE. Due to its properties recommended is for conveying hot media, applications CIP. hose can be delivered with meter, as and in the molds complete lines. Layer outer in the molds white silicone facilitates maintaining purity. such solution protects also the operator against burn. high resistance layer internal on long-term action steam water. at temperature use above +160°C maximum pressure working given in data technical should reduced o 1% on each 1°C above tej temperatures. for example at temperature 180°C maximum pressure working for hose AF-FXSS-10 is: 100 bar – (180°C-160°C) x 1 = 100 bar – 20% = 80 bar. the given in data value vacuum, defined is for temperatures use up to 150°C. hose standard is in version antistatic, Available also in version with natural PTFE. Hose material: inside smooth, externally Serrated, antistatic PTFE (teflon). Reinforcement: single braid of steel AISI 304 with additional layer protective with white rubber silicone. Working pressure: from 50 bar to 110 bar – depending on the diameter hose. Operating temperature: od -70°C up to +204°C.

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

204

Minimum operating temperature [°C]

-70

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid
