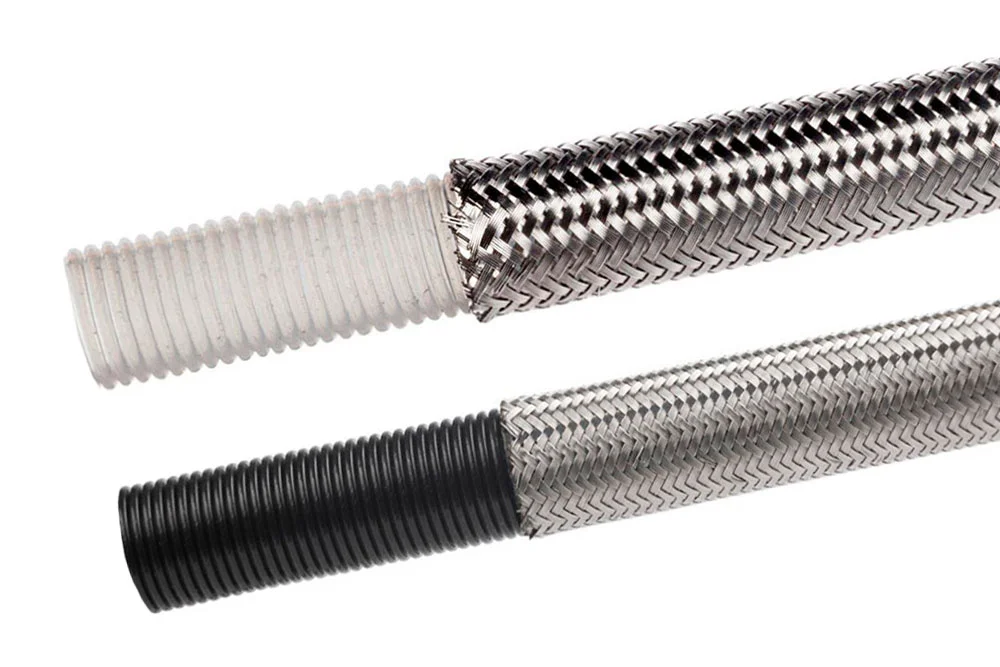

Hose PTFE pliable, smooth inside, externally Serrated in braid of steel stainless, HYPERLINE FX
Hose HYPERLINE FX is optimal solution in use industrial, when required are large flow rates, resistance chemical and temperature, resistance to penetration. perfectly is suitable for conveying substances chemical, fuels, oils, paints, solvents, adhesives, dyes, gases and steam water, detergents, water and substances food. at temperature use above +160°C maximum pressure working given in table should reduced o 1% on each 1°C above tej temperatures. for example at temperature 180°C maximum pressure working for hose AF-FXSS-10 is: 100 bar – (180°C-160°C) x 1 = 100 bar – 20% = 80 bar. W case, when a hose PTFE flows substances, which is poor conductor and has potential properties electrification, charge electric will accumulated on internal surface PTFE and to avoid problem electricity static is used antistatic AS variant PTFE. antistatic teflon in version AS contains appropriate distributed in PTFE graphite and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). Hose material: inside smooth, externally Serrated PTFE (teflon) – natural white and antistatic – black. Reinforcement: braid of steel AISI 304. Working pressure: from 50 bar to 110 bar – depending on the diameter hose. Operating temperature: od -70°C up to +260°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Hose HYPERLINE FX is optimal solution in use industrial, when required are large flow rates, resistance chemical and temperature, resistance to penetration. perfectly is suitable for conveying substances chemical, fuels, oils, paints, solvents, adhesives, dyes, gases and steam water, detergents, water and substances food. at temperature use above +160°C maximum pressure working given in table should reduced o 1% on each 1°C above tej temperatures. for example at temperature 180°C maximum pressure working for hose AF-FXSS-10 is: 100 bar – (180°C-160°C) x 1 = 100 bar – 20% = 80 bar. W case, when a hose PTFE flows substances, which is poor conductor and has potential properties electrification, charge electric will accumulated on internal surface PTFE and to avoid problem electricity static is used antistatic AS variant PTFE. antistatic teflon in version AS contains appropriate distributed in PTFE graphite and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). Hose material: inside smooth, externally Serrated PTFE (teflon) – natural white and antistatic – black. Reinforcement: braid of steel AISI 304. Working pressure: from 50 bar to 110 bar – depending on the diameter hose. Operating temperature: od -70°C up to +260°C.
Additional information
| Material | PTFE – teflon and similar |
|---|---|
| Maximum operating temperature [°C] | 260 |
| Minimum operating temperature [°C] | -70 |
| Vacuum resistance | yes |
| Reinforcement | steel braid |
