Is the 5/8" BSF Connection Gauge with Metal Cap and Male Thread compatible with JCB hydraulic couplings and standards?

Yes. The 5/8" BSF Connection Gauge with Metal Cap and Male Thread Format is explicitly designed in the British HSP type and stated as compliant with JCB standards, making it compatible with JCB hydraulic couplings and practices. Its external BSP-style male thread, robust galvanized carbon steel construction, built‑in ball valve, and NBR sealing provide secure, leak‑free integration under high loads. With a maximum working pressure of 420 bar and an operating range of −30°C to +120°C, it meets the durability and performance demands typical of JCB hydraulic systems, ensuring reliable and safe operation in professional applications.

Does the 5/8" BSF Connection Gauge with Metal Cap and Male Thread require special maintenance to preserve its NBR seal integrity and corrosion resistance under heavy use?

5/8" BSF Connection Gauge with Metal Cap and Male Thread Format: Regular maintenance is recommended but no extraordinary procedures are required to preserve the NBR seal and corrosion resistance under heavy use. Follow these practical steps: - Routine inspection: check the NBR seal, thread and metal cap for cuts, hardening, swell or chemical attack at regular intervals (daily–weekly depending on duty cycle). - Cleanliness: keep threads, cap and valve free of dirt and debris; wipe with a clean, lint‑free cloth and use appropriate solvent that is safe for NBR if needed. - Lubrication/protection: apply a thin film of compatible, non‑petroleum lubricant or anti‑seize on external threads to reduce galling and corrosion; avoid oils/greases that cause NBR swelling (use mineral‑oil or specified compatible lubricants). - Seal replacement: replace the NBR seal at first sign of deterioration or according to your maintenance schedule; NBR is serviceable and inexpensive to swap. - Corrosion control: galvanized carbon steel resists corrosion, but in highly corrosive environments (salt spray, chemical exposure) add external protective measures — e.g., additional coatings, regular rinsing, or storage in dry conditions when not in use. - Pressure/temperature adherence: operate within rated limits (≤420 bar, -30°C to +120°C) to avoid accelerated seal aging or material degradation. Adhering to these common maintenance practices will preserve leak‑free performance and corrosion resistance without special or exotic treatment.

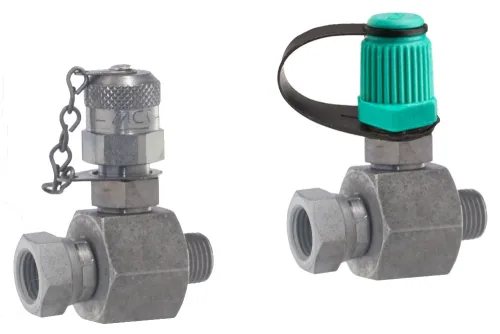

5/8″ BSF Connection Gauge with Metal Cap and Male Thread

All products, Measurement couplings/

Additional information

Material	CS – steel (cast iron)

The 5/8″ BSF measurement connection, designed in the British HSP type and compliant with JCB standards, ensures reliable integration with hydraulic systems thanks to its robust external BSP thread and protective metal cap. Engineered from high‑quality galvanized carbon steel, it offers exceptional durability and resistance to demanding working environments. The built‑in ball valve provides secure and efficient operation, while the NBR sealing guarantees leak‑free performance under high pressure. With a maximum working pressure of 420 bar and an impressive operating temperature range from -30°C to +120°C, this connection delivers consistent reliability even in extreme conditions. Its precise construction and long‑lasting materials make it an ideal choice for professionals seeking dependable solutions for hydraulic installations, ensuring both safety and efficiency in every application.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
PS-616-01-202-21	5/8" BSF measuring connector, GZ 1/8" BSP fitting, type E, metal plug	-	420
PS-616-01-204-21	5/8" BSF measuring connector, GZ 1/4 BSP fitting, type E, metal cap	-	420

The 5/8″ BSF measurement connection, designed in the British HSP type and compliant with JCB standards, ensures reliable integration with hydraulic systems thanks to its robust external BSP thread and protective metal cap. Engineered from high‑quality galvanized carbon steel, it offers exceptional durability and resistance to demanding working environments. The built‑in ball valve provides secure and efficient operation, while the NBR sealing guarantees leak‑free performance under high pressure. With a maximum working pressure of 420 bar and an impressive operating temperature range from -30°C to +120°C, this connection delivers consistent reliability even in extreme conditions. Its precise construction and long‑lasting materials make it an ideal choice for professionals seeking dependable solutions for hydraulic installations, ensuring both safety and efficiency in every application.
