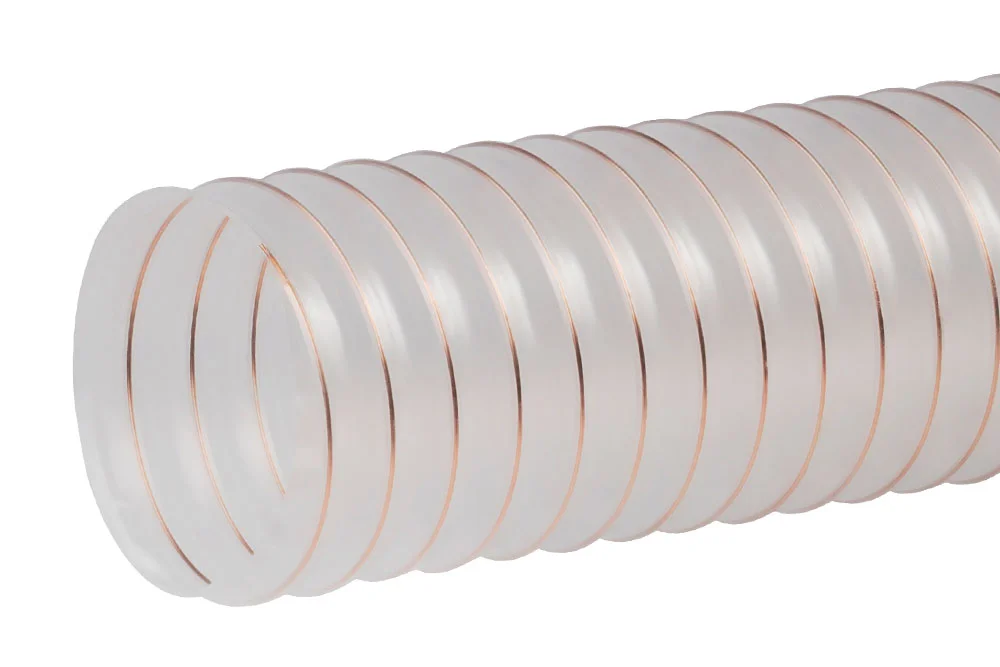

Hose ducting for conveying aggressive vapours and gases P2PE, P2PEEL
Very light, very flexible and pliable hose intended for discharge aggressive vapours chemical and gases, ventilation and air conditioning. good resistance chemical on solvents and other aggressive vapours. Checking chemical resistance – the chemical resistance table for polyethylene (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. resistant to hydrolysis and corrosion biological. Contains no halogen compounds or plasticisers. used mainly in industry chemical. on request available diameter in the scope 40 ÷ 610 mm. hose occurs in two versions: P2PE – standard and P2PE EL – conductive electrically o resistance R ≤10 4 Ω, compliant with the directive ATEX 2014/34/EU and the standard TRGS 727, made with black polyethylene. Hose material: polyethylene (PE), transparent – version standard P2PE, black – version conductive electrically P2PEEL. Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +60°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Very light, very flexible and pliable hose intended for discharge aggressive vapours chemical and gases, ventilation and air conditioning. good resistance chemical on solvents and other aggressive vapours. Checking chemical resistance – the chemical resistance table for polyethylene (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. resistant to hydrolysis and corrosion biological. Contains no halogen compounds or plasticisers. used mainly in industry chemical. on request available diameter in the scope 40 ÷ 610 mm. hose occurs in two versions: P2PE – standard and P2PE EL – conductive electrically o resistance R ≤10 4 Ω, compliant with the directive ATEX 2014/34/EU and the standard TRGS 727, made with black polyethylene. Hose material: polyethylene (PE), transparent – version standard P2PE, black – version conductive electrically P2PEEL. Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +60°C.
Additional information
| Material | PE – polyethylene |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 12, 2, 3, 40, 60 |
| Reinforcement | steel spiral |
