What is the maximum working pressure for the PNG6 connection plate with side-mounted connections?

The maximum working pressure for the PNG6 connection plate with side-mounted connections is up to 315 bar.

Can the PNG6 connection plate with side-mounted connections be used with different hydraulic fluids and seals without affecting performance?

Yes — the PNG6 connection plate with side-mounted connections can be used with different hydraulic fluids and seals in most typical applications, provided compatibility checks are made. Its high‑quality steel construction and robust design (rated to 315 bar and wide temperature ranges: medium −20°C to +80°C, environment −20°C to +50°C) support reliable performance across varied fluids and sealing materials. However, to avoid degraded performance or premature failure, ensure: - Fluid compatibility with seal material (some fluids swell, harden or degrade certain elastomers). - Seal temperature and pressure ratings match your operating conditions. - Corrosion or chemical attack on steel by aggressive fluids is assessed (additives or certain synthetic fluids can affect metals). - Installation and maintenance follow manufacturer recommendations. If compatibility is confirmed for the chosen fluid and seal compound, the PNG6 connection plate with side-mounted connections will maintain efficient, safe operation without adverse effects.

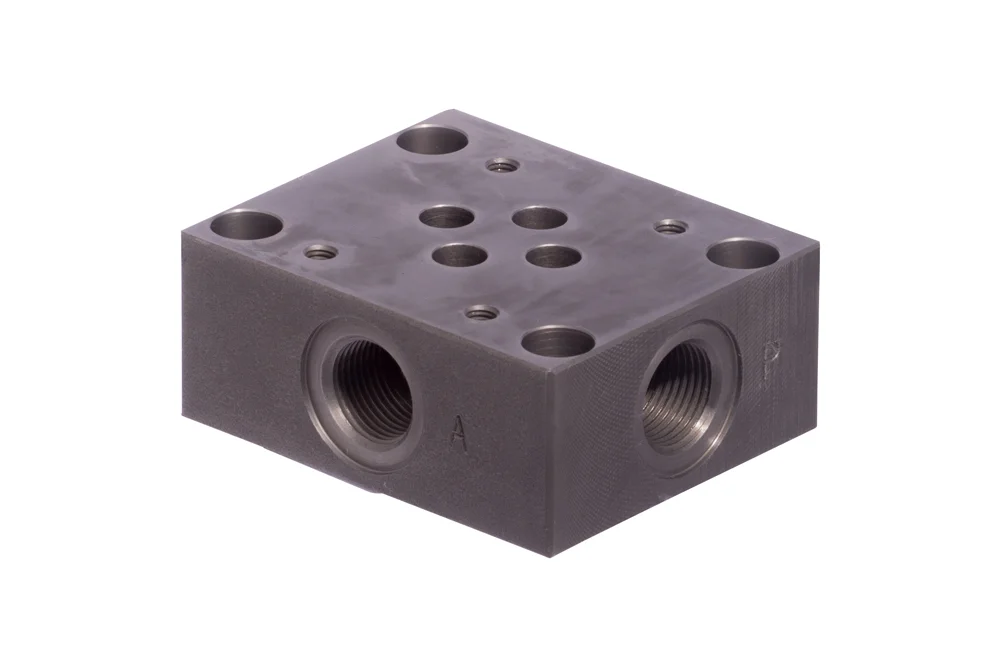

PNG6 connection plate with side-mounted connections

All products, Valves and plate adapters/

Additional information

Material	CS – steel (cast iron)

The connection plate is a durable and reliable solution designed for seamless integration of hydraulic hoses with a plate valve (distributor), ensuring efficient and secure operation in demanding hydraulic systems. Manufactured from high‑quality steel, it guarantees exceptional strength and resistance to wear, making it suitable for intensive industrial use. The side‑mounted connections provide convenient access and easy installation, optimizing space and simplifying maintenance. Engineered to withstand a maximum working pressure of up to 315 bar, the plate ensures safe and stable performance even under high loads. Its wide operating temperature range, from -20°C to +80°C for the medium and from -20°C to +50°C for the environment, allows it to perform reliably in diverse working conditions. This robust construction makes the connection plate an excellent choice for applications requiring durability, precision, and long‑lasting efficiency in hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TL-PNG6-B38	NG6 plate, 3/8" BSP side connections	-	315	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The connection plate is a durable and reliable solution designed for seamless integration of hydraulic hoses with a plate valve (distributor), ensuring efficient and secure operation in demanding hydraulic systems. Manufactured from high‑quality steel, it guarantees exceptional strength and resistance to wear, making it suitable for intensive industrial use. The side‑mounted connections provide convenient access and easy installation, optimizing space and simplifying maintenance. Engineered to withstand a maximum working pressure of up to 315 bar, the plate ensures safe and stable performance even under high loads. Its wide operating temperature range, from -20°C to +80°C for the medium and from -20°C to +50°C for the environment, allows it to perform reliably in diverse working conditions. This robust construction makes the connection plate an excellent choice for applications requiring durability, precision, and long‑lasting efficiency in hydraulic systems.
