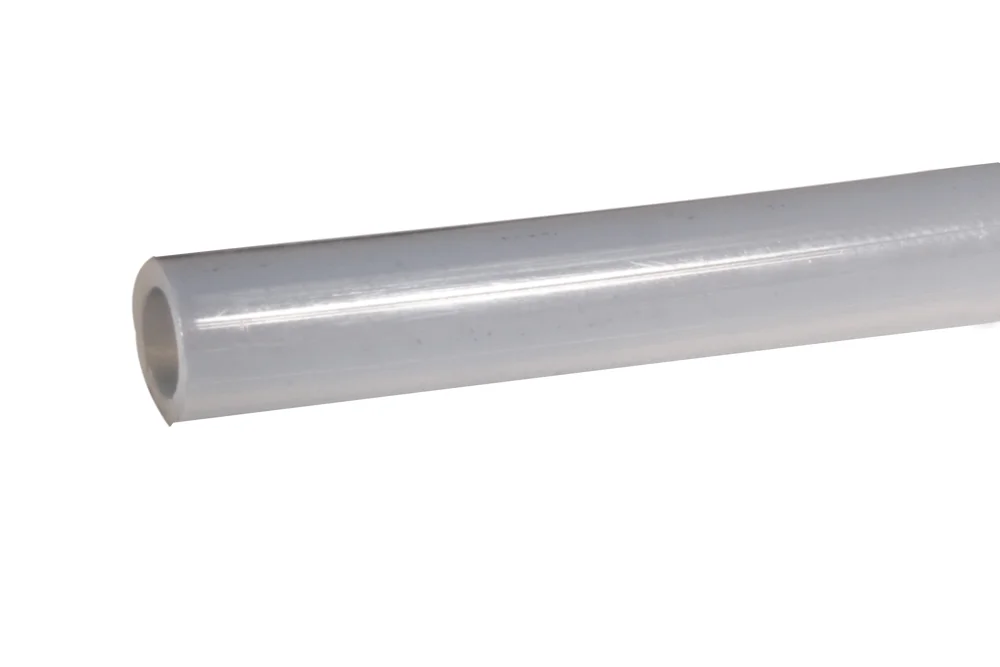

DIN 73378 Polyamide Pneumatic Hose PA12 S40-PHL

Additional information

Material

PA – polyamide

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Standard length [m]

10, 100, 2, 50

This lightweight and highly flexible polyamide PA 12 hose is designed for universal use in pneumatic, hydraulic, oil, fuel, lubrication, and chemical systems, offering excellent resistance to water and oil-contaminated air. Manufactured in compliance with DIN 73378 and DIN 74324 standards, it ensures reliable performance in demanding automotive and industrial applications, including pneumatic braking systems. The hose is available in multiple variants with enhanced resistance: plasticized (P), thermally stable (H), and UV-resistant (L), making it adaptable to diverse working environments. With a calibrated outer diameter for precise installation, it withstands working pressures from 12 to 44 bar, depending on size and wall thickness, while maintaining durability across a wide temperature range from -40°C to +80°C (up to +70°C for water-based media). Offered in natural, black, blue, green, red, and yellow, it not only guarantees technical reliability but also enables clear system identification and streamlined maintenance. This combination of strength, flexibility, and compliance with international standards makes it a trusted solution for professionals seeking efficiency, safety, and long-lasting performance.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
ZC-PA12-S40PHL-03X015Nylon hose PA12 S40-PHL 3x1.5 mm144
ZC-PA12-S40PHL-03X015BKNylon hose PA12 S40-PHL 3x1.5 mm, black144
ZC-PA12-S40PHL-03X015BLNylon hose PA12 S40-PHL 3x1.5 mm, blue144
ZC-PA12-S40PHL-03X015GNylon hose PA12 S40-PHL 3x1.5 mm, green144
ZC-PA12-S40PHL-03X015RNylon hose PA12 S40-PHL 3x1.5 mm, red144
ZC-PA12-S40PHL-03X015YNylon hose PA12 S40-PHL 3x1.5 mm, yellow144
ZC-PA12-S40PHL-04X02Nylon hose PA12 S40-PHL 4x2 mm244
ZC-PA12-S40PHL-04X025Nylon hose PA12 S40-PHL 4x2.5 mm219
ZC-PA12-S40PHL-04X02BKNylon hose PA12 S40-PHL 4x2 mm, black244
ZC-PA12-S40PHL-04X02BLNylon hose PA12 S40-PHL 4x2 mm, blue244
ZC-PA12-S40PHL-04X02GNylon hose PA12 S40-PHL 4x2 mm, green244
ZC-PA12-S40PHL-04X02RNylon hose PA12 S40-PHL 4x2 mm, red244
ZC-PA12-S40PHL-04X02YNylon hose PA12 S40-PHL 4x2 mm, yellow244
ZC-PA12-S40PHL-04X03PA12 nylon hose S40-PHL 4x3 mm319
ZC-PA12-S40PHL-04X03BKNylon hose PA12 S40-PHL 4x3 mm, black319
ZC-PA12-S40PHL-04X03BLNylon hose PA12 S40-PHL 4x3 mm, blue319
ZC-PA12-S40PHL-04X03GNylon hose PA12 S40-PHL 4x3 mm, green319
ZC-PA12-S40PHL-04X03RNylon hose PA12 S40-PHL 4x3 mm, red319
ZC-PA12-S40PHL-04X03YNylon hose PA12 S40-PHL 4x3 mm, yellow319
ZC-PA12-S40PHL-05X03Nylon hose PA12 S40-PHL 5x3 mm333
ZC-PA12-S40PHL-05X035Nylon hose PA12 S40-PHL 5x3.5 mm423
ZC-PA12-S40PHL-05X03BKNylon hose PA12 S40-PHL 5x3 mm, black333
ZC-PA12-S40PHL-05X03BLNylon hose PA12 S40-PHL 5x3 mm, blue333
ZC-PA12-S40PHL-05X03GNylon hose PA12 S40-PHL 5x3 mm, green333
ZC-PA12-S40PHL-05X03RPA12 nylon hose S40-PHL 5x3 mm, red333
ZC-PA12-S40PHL-05X03YNylon hose PA12 S40-PHL 5x3 mm, yellow333
ZC-PA12-S40PHL-06X03Nylon hose PA12 S40-PHL 6x3 mm344
ZC-PA12-S40PHL-06X04Nylon hose PA12 S40-PHL 6x4 mm428
ZC-PA12-S40PHL-06X04BKNylon hose PA12 S40-PHL 6x4 mm, black428
ZC-PA12-S40PHL-06X04BLNylon hose PA12 S40-PHL 6x4 mm, blue428
ZC-PA12-S40PHL-06X04GNylon hose PA12 S40-PHL 6x4 mm, green428
ZC-PA12-S40PHL-06X04RNylon hose PA12 S40-PHL 6x4 mm, red428
ZC-PA12-S40PHL-06X04YNylon hose PA12 S40-PHL 6x4 mm, yellow428
ZC-PA12-S40PHL-08X05Nylon hose PA12 S40-PHL 8x5 mm532
ZC-PA12-S40PHL-08X05BKNylon hose PA12 S40-PHL 8x5 mm, black532
ZC-PA12-S40PHL-08X06Nylon hose PA12 S40-PHL 8x6 mm620
ZC-PA12-S40PHL-08X06BKNylon hose PA12 S40-PHL 8x6 mm, black620
ZC-PA12-S40PHL-08X06BLNylon hose PA12 S40-PHL 8x6 mm, blue620
ZC-PA12-S40PHL-08X06GNylon hose PA12 S40-PHL 8x6 mm, green620
ZC-PA12-S40PHL-08X06RNylon hose PA12 S40-PHL 8x6 mm, red620
ZC-PA12-S40PHL-08X06YNylon hose PA12 S40-PHL 8x6 mm, yellow620
ZC-PA12-S40PHL-10X06Nylon hose PA12 S40-PHL 10x6 mm633
ZC-PA12-S40PHL-10X06BKNylon hose PA12 S40-PHL 10x6 mm, black633
ZC-PA12-S40PHL-10X06BLNylon hose PA12 S40-PHL 10x6 mm, blue633
ZC-PA12-S40PHL-10X06GNylon hose PA12 S40-PHL 10x6 mm, green633
ZC-PA12-S40PHL-10X06RNylon hose PA12 S40-PHL 10x6 mm, red633
ZC-PA12-S40PHL-10X06YNylon hose PA12 S40-PHL 10x6 mm, yellow633
ZC-PA12-S40PHL-10X07Nylon hose PA12 S40-PHL 10x7 mm623
ZC-PA12-S40PHL-10X075Nylon hose PA12 S40-PHL 10x7.5 mm820
ZC-PA12-S40PHL-10X075BKNylon hose PA12 S40-PHL 10x7.5 mm, black820
ZC-PA12-S40PHL-10X07BKNylon hose PA12 S40-PHL 10x7 mm, black623
ZC-PA12-S40PHL-10X07BLNylon hose PA12 S40-PHL 10x7 mm, blue623
ZC-PA12-S40PHL-10X07GNylon hose PA12 S40-PHL 10x7 mm, green623
ZC-PA12-S40PHL-10X07RNylon hose PA12 S40-PHL 10x7 mm, red623
ZC-PA12-S40PHL-10X07YNylon hose PA12 S40-PHL 10x7 mm, yellow623
ZC-PA12-S40PHL-10X08Nylon hose PA12 S40-PHL 10x8 mm816
ZC-PA12-S40PHL-10X08BKNylon hose PA12 S40-PHL 10x8 mm, black816
ZC-PA12-S40PHL-10X08BLNylon hose PA12 S40-PHL 10x8 mm, blue816
ZC-PA12-S40PHL-10X08GNylon hose PA12 S40-PHL 10x8 mm, green816
ZC-PA12-S40PHL-10X08RNylon hose PA12 S40-PHL 10x8 mm, red816
ZC-PA12-S40PHL-10X08YNylon hose PA12 S40-PHL 10x8 mm, yellow828
ZC-PA12-S40PHL-12X08Nylon hose PA12 S40-PHL 12x8 mm828
ZC-PA12-S40PHL-12X08BKNylon hose PA12 S40-PHL 12x8 mm, black828
ZC-PA12-S40PHL-12X08BLNylon hose PA12 S40-PHL 12x8 mm, blue828
ZC-PA12-S40PHL-12X08GNylon hose PA12 S40-PHL 12x8 mm, green828
ZC-PA12-S40PHL-12X08RNylon hose PA12 S40-PHL 12x8 mm, red828
ZC-PA12-S40PHL-12X08YNylon hose PA12 S40-PHL 12x8 mm, yellow828
ZC-PA12-S40PHL-12X09Nylon hose PA12 S40-PHL 12x9 mm820
ZC-PA12-S40PHL-12X09BKNylon hose PA12 S40-PHL 12x9 mm, black820
ZC-PA12-S40PHL-12X09BLNylon hose PA12 S40-PHL 12x9 mm, blue820
ZC-PA12-S40PHL-12X09GNylon hose PA12 S40-PHL 12x9 mm, green820
ZC-PA12-S40PHL-12X09RNylon hose PA12 S40-PHL 12x9 mm, red820
ZC-PA12-S40PHL-12X09YNylon hose PA12 S40-PHL 12x9 mm, yellow820
ZC-PA12-S40PHL-12X10Nylon hose PA12 S40-PHL 12x10 mm1012
ZC-PA12-S40PHL-12X10BKNylon hose PA12 S40-PHL 12x10 mm, black1012
ZC-PA12-S40PHL-12X10BLNylon hose PA12 S40-PHL 12x10 mm, blue1012
ZC-PA12-S40PHL-12X10GNylon hose PA12 S40-PHL 12x10 mm, green1012
ZC-PA12-S40PHL-12X10RNylon hose PA12 S40-PHL 12x10 mm, red1012
ZC-PA12-S40PHL-12X10YNylon hose PA12 S40-PHL 12x10 mm, yellow1012
ZC-PA12-S40PHL-14X10Nylon hose PA12 S40-PHL 14x10 mm1023
ZC-PA12-S40PHL-14X10BKNylon hose PA12 S40-PHL 14x10 mm, black1023
ZC-PA12-S40PHL-14X10BLNylon hose PA12 S40-PHL 14x10 mm, blue1023
ZC-PA12-S40PHL-14X10GNylon hose PA12 S40-PHL 14x10 mm, green1023
ZC-PA12-S40PHL-14X10RNylon hose PA12 S40-PHL 14x10 mm, red1023
ZC-PA12-S40PHL-14X10YNylon hose PA12 S40-PHL 14x10 mm, yellow1023
ZC-PA12-S40PHL-14X11Nylon hose PA12 S40-PHL 14x11 mm1016
ZC-PA12-S40PHL-14X11BKNylon hose PA12 S40-PHL 14x11 mm, black1016
ZC-PA12-S40PHL-14X11BLNylon hose PA12 S40-PHL 14x11 mm, blue1016
ZC-PA12-S40PHL-14X11GNylon hose PA12 S40-PHL 14x11 mm, green1016
ZC-PA12-S40PHL-14X11RNylon hose PA12 S40-PHL 14x11 mm, red1016
ZC-PA12-S40PHL-14X11YNylon hose PA12 S40-PHL 14x11 mm, yellow1016
ZC-PA12-S40PHL-15X12Nylon hose PA12 S40-PHL 15x12 mm1216
ZC-PA12-S40PHL-15X12BKNylon hose PA12 S40-PHL 15x12 mm, black1216
ZC-PA12-S40PHL-15X12BLNylon hose PA12 S40-PHL 15x12 mm, blue1216
ZC-PA12-S40PHL-15X13Nylon hose PA12 S40-PHL 15x13 mm1411
ZC-PA12-S40PHL-16X12Nylon hose PA12 S40-PHL 16x12 mm1220
ZC-PA12-S40PHL-16X12BLNylon hose PA12 S40-PHL 16x12 mm, blue1220
ZC-PA12-S40PHL-16X13Nylon hose PA12 S40-PHL 16x13 mm1413
ZC-PA12-S40PHL-16X13BKNylon hose PA12 S40-PHL 16x13 mm, black1213
ZC-PA12-S40PHL-16X13BLNylon hose PA12 S40-PHL 16x13 mm, blue1413
ZC-PA12-S40PHL-18X14Nylon hose PA12 S40-PHL 18x14 mm1417
ZC-PA12-S40PHL-18X15Nylon hose PA12 S40-PHL 18x15 mm1612
ZC-PA12-S40PHL-20X16Nylon hose PA12 S40-PHL 20x16 mm1616
ZC-PA12-S40PHL-22X18Nylon hose PA12 S40-PHL 22x18 mm1813

This lightweight and highly flexible polyamide PA 12 hose is designed for universal use in pneumatic, hydraulic, oil, fuel, lubrication, and chemical systems, offering excellent resistance to water and oil-contaminated air. Manufactured in compliance with DIN 73378 and DIN 74324 standards, it ensures reliable performance in demanding automotive and industrial applications, including pneumatic braking systems. The hose is available in multiple variants with enhanced resistance: plasticized (P), thermally stable (H), and UV-resistant (L), making it adaptable to diverse working environments. With a calibrated outer diameter for precise installation, it withstands working pressures from 12 to 44 bar, depending on size and wall thickness, while maintaining durability across a wide temperature range from -40°C to +80°C (up to +70°C for water-based media). Offered in natural, black, blue, green, red, and yellow, it not only guarantees technical reliability but also enables clear system identification and streamlined maintenance. This combination of strength, flexibility, and compliance with international standards makes it a trusted solution for professionals seeking efficiency, safety, and long-lasting performance.

Additional information

Material

PA – polyamide

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Standard length [m]

10, 100, 2, 50
