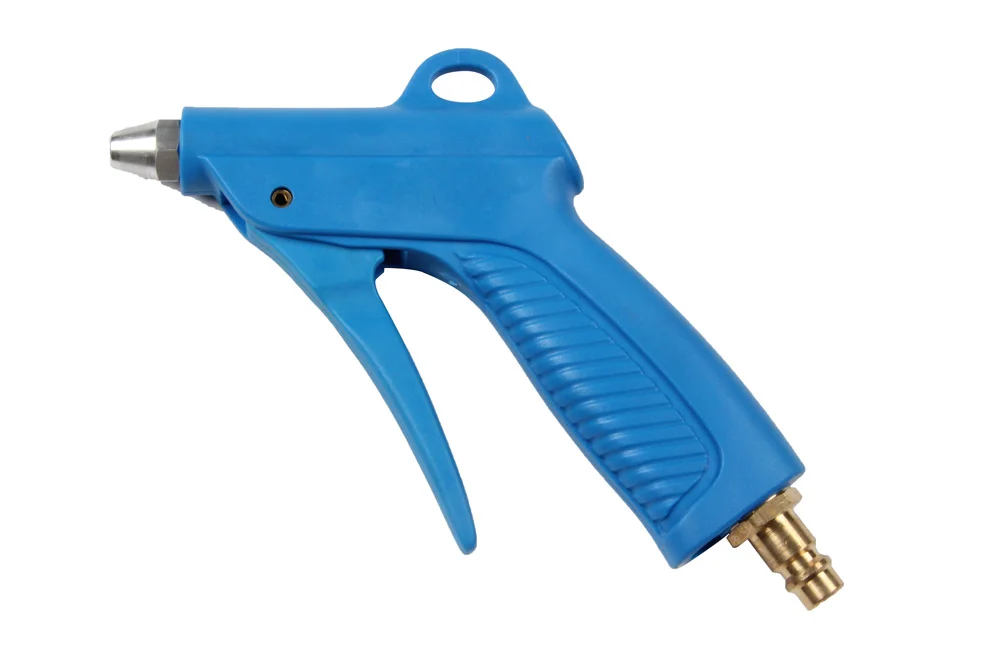

Gun for air with nozzle standard, polyamide

Additional information

Light plastic Gun for compressed air, intended for removing with surface all contaminants: liquids, fine chips, filings etc. regulation flow degree press lever. made with strength polyamide glass-fiber-reinforced. ergonomic shape and not demanding use force action lever ensures comfort use. Due to low mass and plastic construction especially recommended for industry automotive, textile, electronic etc. Gun equipped is in standard nozzle o diameter hole 1.5 mm, replaceable, with thread connection external M12x1.25. instead of nozzle standard install can other nozzles – see accessories for guns EWO. depending on the connection we distinguish Gun terminated a plug EUROSTANDARD 7.2, fitting for hose o diameter 6 mm, 9 mm and 13 mm or thread internal 1/4″. Material: body – blue polyamide (PA6 GK30) glass-fiber-reinforced; sealing – NBR, PU. pressure maximum: 10 bar. pressure operating: 2 ÷ 6 bar. Operating temperature: od -10°C up to +50°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
EW-47011Air gun with d. standard, Fitting 6 mm (PA)-10In stock0 €
Enquiry
EW-47017Air gun with d. standard, Fitting 9 mm (PA)-10In stock0 €
Enquiry
EW-47018Air gun with d. standard, Fitting 13 mm (PA)-10In stock0 €
Enquiry
EW-47040Air gun, nozzle standard, orifice dia. 1.5 mm, 1/4" BSP female, (PA)-10In stock0 €
Enquiry
EW-47041Air gun, nozzle standard, orifice dia. 1.5 mm, plug DN 7.2, (PA)-10In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light plastic Gun for compressed air, intended for removing with surface all contaminants: liquids, fine chips, filings etc. regulation flow degree press lever. made with strength polyamide glass-fiber-reinforced. ergonomic shape and not demanding use force action lever ensures comfort use. Due to low mass and plastic construction especially recommended for industry automotive, textile, electronic etc. Gun equipped is in standard nozzle o diameter hole 1.5 mm, replaceable, with thread connection external M12x1.25. instead of nozzle standard install can other nozzles – see accessories for guns EWO. depending on the connection we distinguish Gun terminated a plug EUROSTANDARD 7.2, fitting for hose o diameter 6 mm, 9 mm and 13 mm or thread internal 1/4″. Material: body – blue polyamide (PA6 GK30) glass-fiber-reinforced; sealing – NBR, PU. pressure maximum: 10 bar. pressure operating: 2 ÷ 6 bar. Operating temperature: od -10°C up to +50°C.
