Can the Hydraulic Test Kit with Hose, Connectors, and Dual Pressure Gauges 160/315 bar in Box safely operate at temperatures outside the gauges' specified range?

Hydraulic Test Kit with Hose, Connectors, and Dual Pressure Gauges 160/315 bar in Box Format should not be operated at temperatures outside the gauges’ specified operating range. The two manometers are glycerin-filled instruments: glycerin damping and internal materials (seals, elastomers, adhesives) are rated for specific temperature limits. Exceeding those limits can cause altered accuracy, sluggish or erratic needle movement, leakage, seal hardening or swelling, and in extreme cases gauge failure. The kit’s hose (DN2, 630 bar), NBR seals and galvanized steel connectors tolerate typical hydraulic working temperatures, but NBR and glycerin have narrower safe temperature windows than metal parts. For safe, accurate operation maintain the gauges and seals within their manufacturer-specified temperature range; if you must test outside that range, use gauges and seals rated for those temperatures or consult the gauge manufacturer for approved alternatives.

Does the Hydraulic Test Kit with Hose, Connectors, and Dual Pressure Gauges 160/315 bar in Box include replacement glycerin-filled manometers if one becomes damaged?

Hydraulic Test Kit with Hose, Connectors, and Dual Pressure Gauges 160/315 bar in Box Format does not state that replacement glycerin-filled manometers are included. The description specifies that the set contains two glycerin-filled manometers (0–160 bar and 0–315 bar) but makes no mention of spare or replacement gauges. If a manometer becomes damaged, replacements are not listed as part of the kit contents and would need to be obtained separately or confirmed with the supplier.

Set measuring for hydraulics power of couplings, a hose and 2 pressure gauges 160 and 315 bar, BOX

All products, Measurement sets/

Additional information

Material	P – material (plastic)

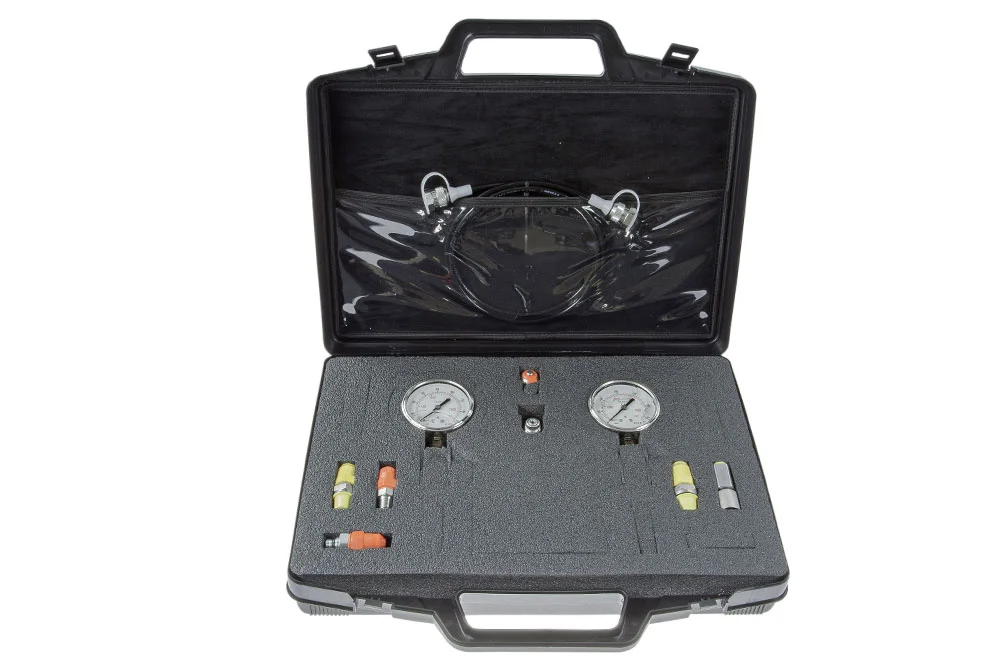

Set measuring intended for diagnostics systems hydraulics power through measurement pressure. set supplied is in plastic case in following configuration: 1. pressure gauge glycerine 63 mm, Connection bottom 1/4” BSP, 0 ÷ 160 bar, pressure gauge glycerine 63 mm, Connection bottom 1/4” BSP, 0 ÷ 315 bar. 2. coupling measurement M16x2 with a cap plastic, with male thread 1/4” BSP, type E, coupling measurement M16x2 with a cap plastic, with male thread 3/8” BSP, type E. 3. coupling measurement M16x2 with a cap plastic, with male thread 1/4” NPT, type C. 4. coupling measurement M16x2 with a cap plastic, with male thread M10x1, type F. 6. cap metal M16x2. 7. Connection with female thread 1/4” BSP for pressure gauge, with female thread M16x2. 8. Connection angled 90° with female thread 1/4” BSP for pressure gauge, with male thread M16x2. 10. hose DN2 (630 bar) with two fitting measurement M16x2 female L = 1.5 m. Material fittings: steel galvanized. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DC-BOX-01	Measurement set BOX with 2 manometrami (160 / 315 bar)	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Set measuring intended for diagnostics systems hydraulics power through measurement pressure. set supplied is in plastic case in following configuration: 1. pressure gauge glycerine 63 mm, Connection bottom 1/4” BSP, 0 ÷ 160 bar, pressure gauge glycerine 63 mm, Connection bottom 1/4” BSP, 0 ÷ 315 bar. 2. coupling measurement M16x2 with a cap plastic, with male thread 1/4” BSP, type E, coupling measurement M16x2 with a cap plastic, with male thread 3/8” BSP, type E. 3. coupling measurement M16x2 with a cap plastic, with male thread 1/4” NPT, type C. 4. coupling measurement M16x2 with a cap plastic, with male thread M10x1, type F. 6. cap metal M16x2. 7. Connection with female thread 1/4” BSP for pressure gauge, with female thread M16x2. 8. Connection angled 90° with female thread 1/4” BSP for pressure gauge, with male thread M16x2. 10. hose DN2 (630 bar) with two fitting measurement M16x2 female L = 1.5 m. Material fittings: steel galvanized. sealing: NBR.
