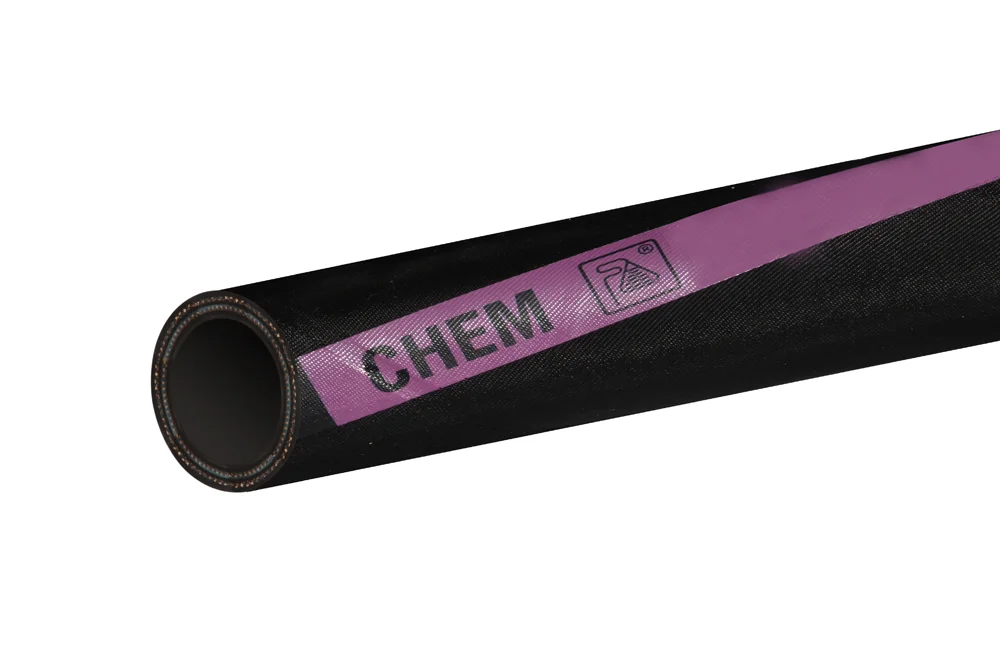

Hose suction-delivery for aggressive substances chemicals PROVIDENCE®

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

60/ 120

Reinforcement

steel spiral, synthetic cover

Hose suction – delivery for conveying almost all aggressive substances chemical. designed specially for industry petrochemical for fuels o high a concentration hydrocarbons aromatic, hot oil and solvents. Due to high general resistance chemical rubber FKM It can be used for aggressive chemicals, in many cases also in elevated temperatures. used for handling chemicals with tankers road and railway. Layer inner with smooth black rubber fluorine FKM. Reinforcement cord synthetic and spiral steel. Layer outer with rubber chloroprene CR, antistatic, resistant to conditions atmospheric, ozone, abrasion and oils. built-in two copper cable for discharge charges electrostatic. compliant with EN 12115:11 (type M). Confirmation of resistance and application conditions requires contact with Tubes International, in particular for temperatures above 50°C. Vacuum: 0.9 bar. Inner layer: black rubber FKM (FPM, Viton). Reinforcement: cord synthetic, steel spiral. Outer layer: black rubber CR. Working pressure: 16 bar. Operating temperature: od -25°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-PROV-019Hose PROVIDENCE EN12115 type M 19x33 mm2016In stock0 €
Enquiry
IV-PROV-025Hose PROVIDENCE EN12115 type M 25x39 mm2516In stock0 €
Enquiry
IV-PROV-032Hose PROVIDENCE EN12115 type M 32x46.5 mm3216In stock0 €
Enquiry
IV-PROV-038Hose PROVIDENCE EN12115 type M 38x54 mm3816In stock0 €
Enquiry
IV-PROV-051Hose PROVIDENCE EN12115 type M 51x66.5 mm5016In stock0 €
Enquiry
IV-PROV-063Hose PROVIDENCE EN12115 type M 63.5x80.5 mm6516In stock0 €
Enquiry
IV-PROV-076Hose PROVIDENCE EN12115 type M 76x94 mm7516In stock0 €
Enquiry
IV-PROV-102Hose PROVIDENCE EN12115 type M 102x127 mm10016In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Hose suction – delivery for conveying almost all aggressive substances chemical. designed specially for industry petrochemical for fuels o high a concentration hydrocarbons aromatic, hot oil and solvents. Due to high general resistance chemical rubber FKM It can be used for aggressive chemicals, in many cases also in elevated temperatures. used for handling chemicals with tankers road and railway. Layer inner with smooth black rubber fluorine FKM. Reinforcement cord synthetic and spiral steel. Layer outer with rubber chloroprene CR, antistatic, resistant to conditions atmospheric, ozone, abrasion and oils. built-in two copper cable for discharge charges electrostatic. compliant with EN 12115:11 (type M). Confirmation of resistance and application conditions requires contact with Tubes International, in particular for temperatures above 50°C. Vacuum: 0.9 bar. Inner layer: black rubber FKM (FPM, Viton). Reinforcement: cord synthetic, steel spiral. Outer layer: black rubber CR. Working pressure: 16 bar. Operating temperature: od -25°C up to +100°C.

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

60/ 120

Reinforcement

steel spiral, synthetic cover
