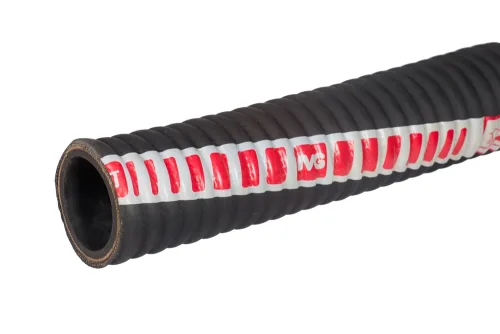

ORINOCO 2000® Sandblasting & Blasting Hose
The sandblasting hose is a highly durable and reliable solution designed for demanding industrial applications, ensuring efficiency and safety in every use. Its thick inner layer, made of high-quality NR/SBR rubber, provides outstanding resistance to abrasion (50±5 mm³ according to ISO 4649 / DIN 53516), making it ideal for transporting sand, steel shot, and other abrasive materials. Both the inner and outer layers are antistatic, effectively preventing the build-up of electrostatic charges and guaranteeing safe operation even in intensive working conditions. Reinforced with a strong synthetic cord, the hose maintains excellent flexibility and strength, while its robust outer layer ensures long-lasting performance in harsh environments. With a working pressure of 12 bar and an impressive operating temperature range from -40°C to +70°C, it delivers consistent results across a wide spectrum of industrial settings. Commonly used in the metalworking and shipbuilding industries, as well as for cleaning steel structures, castings, and concrete surfaces, it is perfectly suited for abrasive blasting tasks. Available in standard lengths of 60 m, with the option of 120 m upon request, and compatible with specialized sandblasting nozzles, this hose guarantees professional performance, reliability, and efficiency in every project.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-ORINOCO2000-13 | ORINOCO 2000 hose 13x27 mm | 12 | 12 | |
| IV-ORINOCO2000-19 | ORINOCO 2000 hose 19x33 mm | 20 | 12 | |
| IV-ORINOCO2000-25 | ORINOCO 2000 hose 25x40 mm | 25 | 12 | |
| IV-ORINOCO2000-32 | ORINOCO 2000 hose 32x48 mm | 32 | 12 | |
| IV-ORINOCO2000-38 | ORINOCO 2000 hose 38x54 mm | 38 | 12 | |
| IV-ORINOCO2000-40 | ORINOCO hose 2000 40x60 mm | 40 | 12 | |
| IV-ORINOCO2000-51 | ORINOCO hose 2000 51x71 mm | 50 | 12 | |
| IV-ORINOCO2000-60 | ORINOCO hose 2000 60x80 mm | 60 | 12 | |
| IV-ORINOCO2000-65 | ORINOCO 2000 hose 65x85 mm | 65 | 12 |
The sandblasting hose is a highly durable and reliable solution designed for demanding industrial applications, ensuring efficiency and safety in every use. Its thick inner layer, made of high-quality NR/SBR rubber, provides outstanding resistance to abrasion (50±5 mm³ according to ISO 4649 / DIN 53516), making it ideal for transporting sand, steel shot, and other abrasive materials. Both the inner and outer layers are antistatic, effectively preventing the build-up of electrostatic charges and guaranteeing safe operation even in intensive working conditions. Reinforced with a strong synthetic cord, the hose maintains excellent flexibility and strength, while its robust outer layer ensures long-lasting performance in harsh environments. With a working pressure of 12 bar and an impressive operating temperature range from -40°C to +70°C, it delivers consistent results across a wide spectrum of industrial settings. Commonly used in the metalworking and shipbuilding industries, as well as for cleaning steel structures, castings, and concrete surfaces, it is perfectly suited for abrasive blasting tasks. Available in standard lengths of 60 m, with the option of 120 m upon request, and compatible with specialized sandblasting nozzles, this hose guarantees professional performance, reliability, and efficiency in every project.
Additional information
| Material | SBR/NR – a mixture of SBR and NR rubber |
|---|---|
| Maximum operating temperature [°C] | 70 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 60 / 120 |
| Reinforcement | synthetic braid |
