Hose for transport sand, grain, granulates, cement ULVAC®

Additional information

Material

NR – natural rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

4, 60

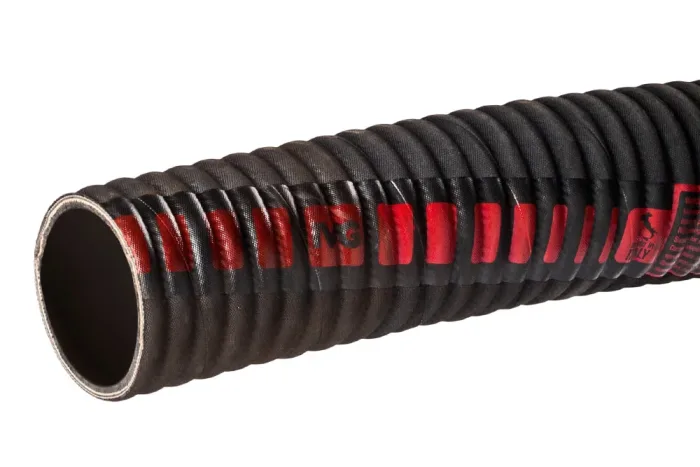

Light and pliable hose rubber, for extraction and transport sand, gravel, cement and other abrasive materials. used also in systems purification and removing material abrasive po treatment blast-abrasive. Layer inner smooth, with abrasion-resistant rubber o wall thickness 3 mm. Layer outer corrugated, resistant to abrasion and conditions atmospheric. thanks to reinforcement spiral steel resistant to kinking and vacuum. designed both for extraction as and use pressure. It has a copper anti-electrostatic wire for discharging electric charges. Inner layer: black or brown rubber natural. Reinforcement: cord synthetic, steel spiral. Outer layer: black rubber NR/SBR. Working pressure: from 2 bar to 3 bar – depending on the diameter hose. Vacuum: for 0.9 bar. Operating temperature: od -30°C up to +70°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-ULVAC-051Hose ULVAC 51x65 mm503In stock0 €
Enquiry
IV-ULVAC-076Hose ULVAC 76x90 mm753In stock0 €
Enquiry
IV-ULVAC-102Hose ULVAC 102x117 mm1003In stock0 €
Enquiry
IV-ULVAC-127Hose ULVAC 127x145 mm1253In stock0 €
Enquiry
IV-ULVAC-152Hose ULVAC 152x171 mm1502In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light and pliable hose rubber, for extraction and transport sand, gravel, cement and other abrasive materials. used also in systems purification and removing material abrasive po treatment blast-abrasive. Layer inner smooth, with abrasion-resistant rubber o wall thickness 3 mm. Layer outer corrugated, resistant to abrasion and conditions atmospheric. thanks to reinforcement spiral steel resistant to kinking and vacuum. designed both for extraction as and use pressure. It has a copper anti-electrostatic wire for discharging electric charges. Inner layer: black or brown rubber natural. Reinforcement: cord synthetic, steel spiral. Outer layer: black rubber NR/SBR. Working pressure: from 2 bar to 3 bar – depending on the diameter hose. Vacuum: for 0.9 bar. Operating temperature: od -30°C up to +70°C.

Additional information

Material

NR – natural rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

4, 60
