What maintenance schedule and condensate discharge option do you recommend for the Compressed Air Prep Unit F+L 100/200/300 – SKILLAIR® Series to ensure peak performance?

Recommended maintenance schedule and condensate discharge option for the Compressed Air Prep Unit F+L 100/200/300 – SKILLAIR® Series: Maintenance schedule: - Daily: Visual check for leaks, correct drain operation, and visible oil mist in lubricator sight glass. - Weekly: Verify inlet pressure, outlet pressure and gauge readings; check for excessive pressure drop and unusual noises. - Monthly: Inspect filter element for contamination; replace if flow or Δp (pressure drop) indicates clogging or if contamination is visible. - Every 3 months: Clean bowl and bowl guard; check lubricator oil level and top up with manufacturer-recommended oil to maintain consistent fine mist. - Every 6–12 months: Replace filter element and service seals; inspect regulator and lubricator function under load. - Annually: Full performance check including flow capacity verification at operational pressure (e.g., 6 bar), leak test, and overall unit inspection; replace wear parts as required. Condensate discharge recommendation: - Use fully automatic condensate drains (SAC or RA) for continuous, unattended operation in most industrial environments to prevent moisture buildup and protect downstream equipment. - Choose semi-automatic (RMSA) drains only where periodic manual intervention is acceptable and where budget constraints exist. - Manual drains are acceptable for low-duty, non-critical applications with frequent operator oversight. - For best performance and minimal downtime, pair the F+L 100/200/300 with a fully automatic SAC or RA drain and follow the maintenance intervals above.

How often should filters and lubricator reservoirs be inspected and replaced on the Compressed Air Prep Unit F+L 100/200/300 – SKILLAIR® Series to prevent contamination and wear?

Compressed Air Prep Unit F+L 100/200/300 – SKILLAIR® Series filters and lubricator reservoirs should be inspected regularly and replaced as part of routine maintenance to prevent contamination and wear. Recommended practice: - Inspect filters visually and check element condition every 1–3 months depending on operating conditions (heavy contamination or dusty environments → monthly; normal industrial conditions → every 2–3 months). - Replace filter elements when differential pressure rises noticeably, contamination is visible, or at least every 6–12 months for typical use; use the finer 5 µm elements in critical applications and replace them more frequently. - Check condensate drains (manual, RMSA, SAC, RA) during each inspection and service as needed to avoid build-up. - Inspect lubricator reservoirs and oil level/quality every 1–3 months; top up with recommended oil when level falls below the minimum. - Replace lubricator reservoir seals or the reservoir itself if cracked, leaking, or contaminated; perform a full reservoir and oil change annually or sooner in high-demand or contamination-prone settings. - After any abnormal event (water carryover, oil contamination, or high particle load), perform immediate inspection and replace elements/reservoir contents as required. Adjust intervals based on actual operating pressure (up to 15 bar), flow/load (1200–4500 l/min), chosen filtration (5/20/50 µm) and site conditions to ensure continued protection and optimal performance.

Assembly preparation compressed air F+L 100 – 200 – 300, series SKILLAIR®

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	10, 15, 30, 60/ 120

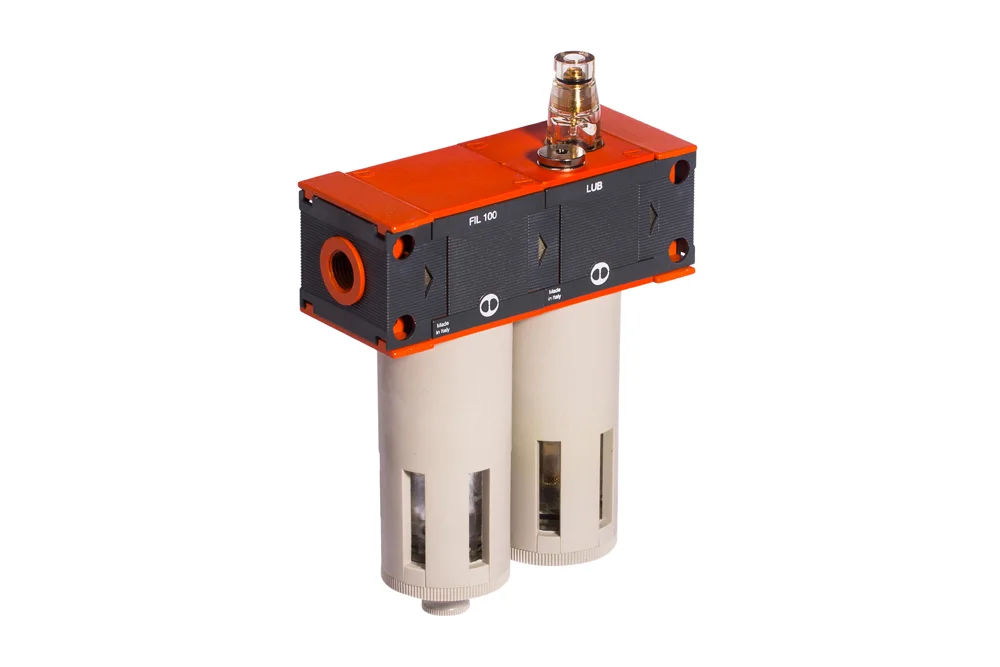

Set F + L series SKILLAIR® o high degree reliability consists with filter air and lubricator. for the purpose set is cleaning air supplied through compressor and lubrication mist oil. Size: 100, 200, 300. Supply pressure: up to 15 bar, depending on size and kinds trigger. Filtration grade: 5 µm, 20 µm, 50 µm. Connection: 1/4″ BSP female ÷ 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC, RA). Operating temperature: up to +50°C. Flow rate nominal: od 1200 for 4500 l/min (at an inlet pressure of 6 bar Δp = 1 bar), depending on size.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3285001	Set F+L 100 1/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3285002	Set F+L 100 1/4 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3285003	Set F+L 100 1/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3285101	Set F+L 100 1/4 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3285102	Set F+L 100 1/4 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3285103	Set F+L 100 1/4 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3385001	Set F+L 100 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3385002	Set F+L 100 3/8 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3385003	Set F+L 100 3/8 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3385101	Set F+L 100 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3385102	Set F+L 100 3/8 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3385103	Set F+L 100 3/8 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3485001	Set F+L 200 1/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3485002	Set F+L 200 1/4 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3485003	Set F+L 200 1/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3485101	Set F+L 200 1/4 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3485102	Set F+L 200 1/4 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3485103	Set F+L 200 1/4 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3585001	Set F+L 200 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3585002	Set F+L 200 3/8 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3585003	Set F+L 200 3/8 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3585101	Set F+L 200 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3585102	Set F+L 200 3/8 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3585103	Set F+L 200 3/8 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3685001	Set F+L 200 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3685002	Set F+L 200 1/2 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3685003	Set F+L 200 1/2 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3685101	Set F+L 200 1/2 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3685102	Set F+L 200 1/2 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3685103	Set F+L 200 1/2 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-4485001	Set F+L 300 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4485002	Set F+L 300 1/2 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4485003	Set F+L 300 1/2 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4485004	Set F+L 300 1/2 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4485005	Set F+L 300 1/2 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4485006	Set F+L 300 1/2 50 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585001	Set F+L 300 3/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585002	Set F+L 300 3/4 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585003	Set F+L 300 3/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585004	Set F+L 300 3/4 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585005	Set F+L 300 3/4 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4585006	Set F+L 300 3/4 50 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685001	Set F+L 300 1 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685002	Set F+L 300 1 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685003	Set F+L 300 1 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685004	Set F+L 300 1 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685005	Set F+L 300 1 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4685006	Set F+L 300 1 50 RA (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Set F + L series SKILLAIR® o high degree reliability consists with filter air and lubricator. for the purpose set is cleaning air supplied through compressor and lubrication mist oil. Size: 100, 200, 300. Supply pressure: up to 15 bar, depending on size and kinds trigger. Filtration grade: 5 µm, 20 µm, 50 µm. Connection: 1/4″ BSP female ÷ 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC, RA). Operating temperature: up to +50°C. Flow rate nominal: od 1200 for 4500 l/min (at an inlet pressure of 6 bar Δp = 1 bar), depending on size.
