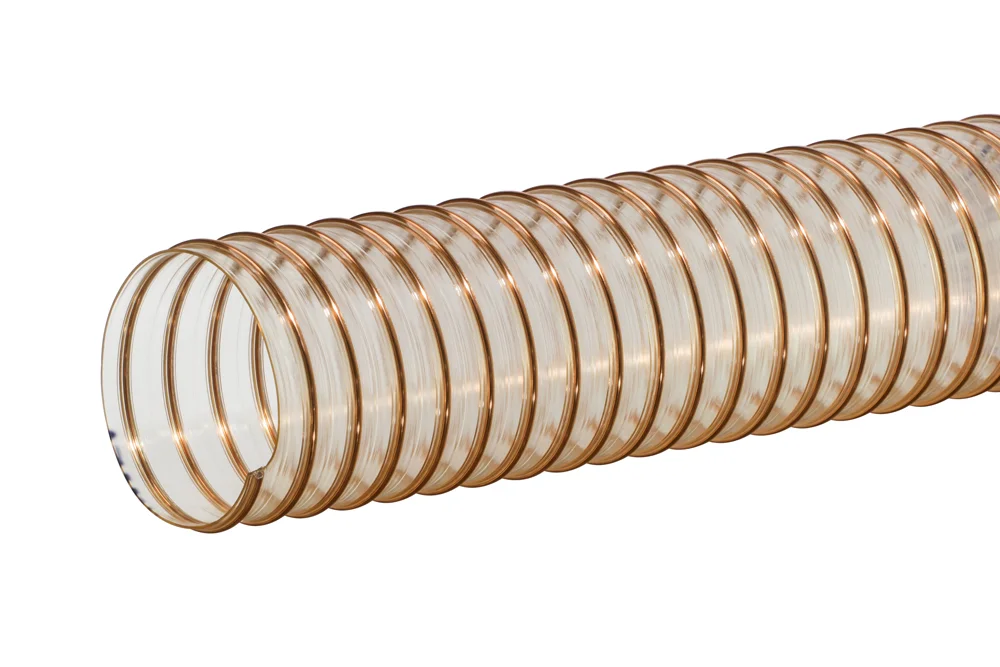

Hose for extraction chips wood SMARTFLEX® 1.0

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 25, 50

Reinforcement

steel spiral

Medium wall thickness, strong and flexible hose intended for discharge sawdust, chips, offcuts, light bulk materials etc. Specially designed according to the requirements of the wood and furniture industry, it can also be used in other industries. Antistatic and flame-retardant, it ensures a high level of work safety. less pliable and compressible than SMARTFLEX® 0.4, 0.6 and 0.7, za to smooth inside, flexible also in low temperatures. With very good abrasion resistance, also resistant to microbes and hydrolysis. Contains no halogen compounds or plasticisers. Resistant to oils and petrol. The optimal flow direction of the medium is marked with an arrow. The hose wall thickness is measured between the spiral. Assembly on connectors with bridge clamps (prawo-handed). Other diameters may be available on special order. Anti-electrostatic properties: permanently antistatic (in accordance with ISO 8031 resistance R 9 Ω, in accordance with the German technical regulations TRGS 727 (6.4.2.4) specific resistance R 8 Ωm, in accordance with directive 2014/34/EU (ATEX) it can be used in specified explosion-hazard zones – which should be preceded by a risk analysis). After effective two-sided earthing of the spiral, it can be treated as electrically conductive – in accordance with BGI 739-2 recommendations. Flame-retardant – in accordance with DIN 4102 class B1. Wall thickness measured between the spiral: 1.0 mm. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +100°C (momentarily up to +125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-SMARTFLEX-025-10SMARTFLEX Hose 1.0 25 mm251.45In stock0 €
Enquiry
SC-SMARTFLEX-030-10SMARTFLEX Hose 1.0 30 mm301.45In stock0 €
Enquiry
SC-SMARTFLEX-032-10SMARTFLEX Hose 1.0 32 mm321.35In stock0 €
Enquiry
SC-SMARTFLEX-035-10SMARTFLEX Hose 1.0 35 mm351.25In stock0 €
Enquiry
SC-SMARTFLEX-038-10SMARTFLEX Hose 1.0 38 mm381.25In stock0 €
Enquiry
SC-SMARTFLEX-040-10SMARTFLEX Hose 1.0 40 mm401.25In stock0 €
Enquiry
SC-SMARTFLEX-045-10SMARTFLEX Hose 1.0 45 mm451.22In stock0 €
Enquiry
SC-SMARTFLEX-050-10SMARTFLEX Hose 1.0 50 mm501.2In stock0 €
Enquiry
SC-SMARTFLEX-055-10SMARTFLEX Hose 1.0 55 mm551.18In stock0 €
Enquiry
SC-SMARTFLEX-060-10SMARTFLEX Hose 1.0 60 mm601.15In stock0 €
Enquiry
SC-SMARTFLEX-063-10SMARTFLEX Hose 1.0 63 mm651.13In stock0 €
Enquiry
SC-SMARTFLEX-065-10SMARTFLEX Hose 1.0 65 mm651.12In stock0 €
Enquiry
SC-SMARTFLEX-070-10SMARTFLEX Hose 1.0 70 mm701.09In stock0 €
Enquiry
SC-SMARTFLEX-075-10SMARTFLEX Hose 1.0 75 mm751.05In stock0 €
Enquiry
SC-SMARTFLEX-080-10SMARTFLEX Hose 1.0 80 mm801.05In stock0 €
Enquiry
SC-SMARTFLEX-090-10SMARTFLEX Hose 1.0 90 mm900.85In stock0 €
Enquiry
SC-SMARTFLEX-100-10SMARTFLEX Hose 1.0 100 mm1000.7In stock0 €
Enquiry
SC-SMARTFLEX-102-10SMARTFLEX Hose 1.0 102 mm1000.7In stock0 €
Enquiry
SC-SMARTFLEX-105-10SMARTFLEX hose 1.0 105 mm1000.68In stock0 €
Enquiry
SC-SMARTFLEX-110-10SMARTFLEX Hose 1.0 110 mm1100.67In stock0 €
Enquiry
SC-SMARTFLEX-115-10SMARTFLEX Hose 1.0 115 mm1100.66In stock0 €
Enquiry
SC-SMARTFLEX-120-10SMARTFLEX Hose 1.0 120 mm1200.65In stock0 €
Enquiry
SC-SMARTFLEX-125-10SMARTFLEX Hose 1.0 125 mm1250.55In stock0 €
Enquiry
SC-SMARTFLEX-130-10SMARTFLEX Hose 1.0 130 mm1300.55In stock0 €
Enquiry
SC-SMARTFLEX-140-10SMARTFLEX Hose 1.0 140 mm1400.55In stock0 €
Enquiry
SC-SMARTFLEX-150-10SMARTFLEX Hose 1.0 150 mm1500.45In stock0 €
Enquiry
SC-SMARTFLEX-160-10SMARTFLEX Hose 1.0 160 mm1600.4In stock0 €
Enquiry
SC-SMARTFLEX-170-10SMARTFLEX Hose 1.0 170 mm1600.37In stock0 €
Enquiry
SC-SMARTFLEX-180-10SMARTFLEX Hose 1.0 180 mm1800.35In stock0 €
Enquiry
SC-SMARTFLEX-200-10SMARTFLEX Hose 1.0 200 mm2000.3In stock0 €
Enquiry
SC-SMARTFLEX-225-10SMARTFLEX Hose 1.0 225 mm2250.25In stock0 €
Enquiry
SC-SMARTFLEX-250-10SMARTFLEX Hose 1.0 250 mm2500.25In stock0 €
Enquiry
SC-SMARTFLEX-300-10SMARTFLEX Hose 1.0 300 mm3000.2In stock0 €
Enquiry
SC-SMARTFLEX-350-10SMARTFLEX Hose 1.0 350 mm3500.18In stock0 €
Enquiry
SC-SMARTFLEX-400-10SMARTFLEX Hose 1.0 400 mm4000.15In stock0 €
Enquiry
SC-SMARTFLEX-450-10SMARTFLEX Hose 1.0 450 mm4500.15In stock0 €
Enquiry
SC-SMARTFLEX-500-10SMARTFLEX Hose 1.0 500 mm5000.15In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Medium wall thickness, strong and flexible hose intended for discharge sawdust, chips, offcuts, light bulk materials etc. Specially designed according to the requirements of the wood and furniture industry, it can also be used in other industries. Antistatic and flame-retardant, it ensures a high level of work safety. less pliable and compressible than SMARTFLEX® 0.4, 0.6 and 0.7, za to smooth inside, flexible also in low temperatures. With very good abrasion resistance, also resistant to microbes and hydrolysis. Contains no halogen compounds or plasticisers. Resistant to oils and petrol. The optimal flow direction of the medium is marked with an arrow. The hose wall thickness is measured between the spiral. Assembly on connectors with bridge clamps (prawo-handed). Other diameters may be available on special order. Anti-electrostatic properties: permanently antistatic (in accordance with ISO 8031 resistance R 9 Ω, in accordance with the German technical regulations TRGS 727 (6.4.2.4) specific resistance R 8 Ωm, in accordance with directive 2014/34/EU (ATEX) it can be used in specified explosion-hazard zones – which should be preceded by a risk analysis). After effective two-sided earthing of the spiral, it can be treated as electrically conductive – in accordance with BGI 739-2 recommendations. Flame-retardant – in accordance with DIN 4102 class B1. Wall thickness measured between the spiral: 1.0 mm. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +100°C (momentarily up to +125°C).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 25, 50

Reinforcement

steel spiral
