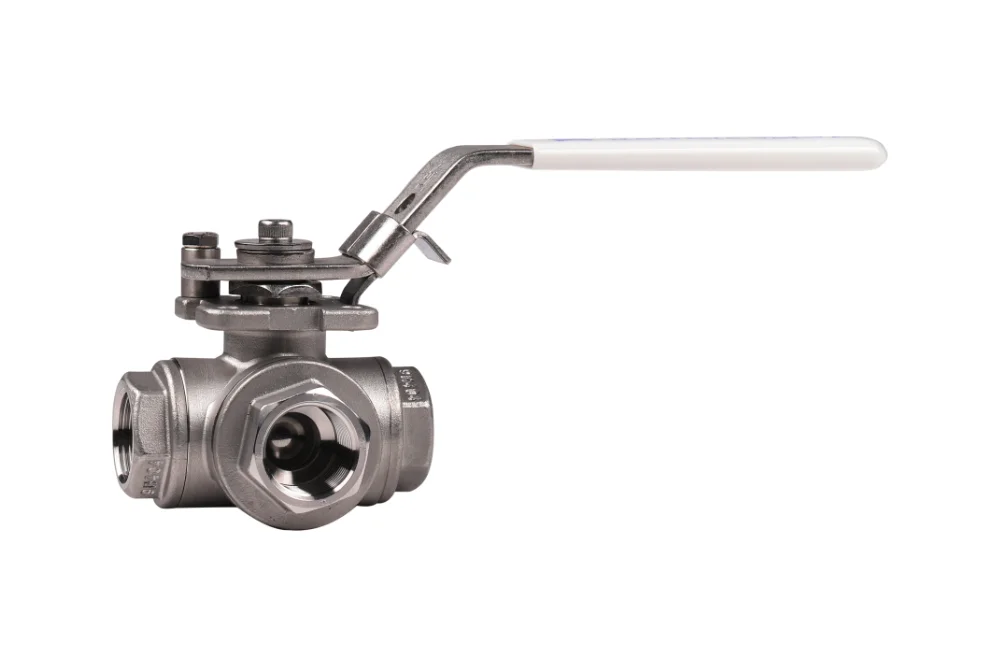

Three-way Ball Valve “L” Type 2057N

Additional information

Material

SS – stainless steel

The universal three-way ball valve type 2057N in “L” configuration is a reliable solution designed for demanding industrial applications, ensuring safe and efficient flow control across a wide range of media. Manufactured with a robust CF8M stainless steel body and ball, complemented by a durable AISI 304 stainless steel lever with lock, it guarantees long-lasting resistance to corrosion and mechanical wear. Equipped with PTFE/RTFE ball sealing and PTFE stem sealing, the valve provides excellent tightness and chemical resistance, making it suitable for air, gases, water, steam, chemicals, and petrochemical products, provided compatibility with the sealing materials is observed. Its BSP female thread connection ensures easy integration into existing systems, while the ISO 5211 flange allows for convenient actuator mounting. Designed to operate within a temperature range of -20°C to +200°C, with working pressure dependent on temperature, the valve complies with the PED Directive 2014/68/EU, ensuring adherence to European safety standards. This versatile and high-performance valve is an ideal choice for industries seeking reliability, safety, and efficiency in fluid control systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HT-2057N-08L3-way ball valve type 2057N "L" BSP 1/4", AISI 316-63In stock
Enquiry
HT-2057N-08LXBall valve type 2057N-X three-way "L" BSP 1/4", AISI 316-63In stock
Enquiry
HT-2057N-10L3-way ball valve type 2057N "L" BSP 3/8", AISI 316-63In stock
Enquiry
HT-2057N-10LX3-way ball valve type 2057N-X "L" BSP 3/8", AISI 316-63In stock
Enquiry
HT-2057N-15L3-way ball valve type 2057N "L" BSP 1/2", AISI 316-63In stock
Enquiry
HT-2057N-15LX3-way ball valve type 2057N-X "L" BSP 1/2", AISI 316-63In stock
Enquiry
HT-2057N-20L3-way ball valve type 2057N "L" BSP 3/4", AISI 316-63In stock
Enquiry
HT-2057N-20LX3-way ball valve type 2057N-X "L" BSP 3/4", AISI 316-63In stock
Enquiry
HT-2057N-25L3-way ball valve type 2057N "L" BSP 1", AISI 316-63In stock
Enquiry
HT-2057N-25LX3-way ball valve type 2057N-X "L" BSP 1", AISI 316-63In stock
Enquiry
HT-2057N-32L3-way ball valve type 2057N "L" BSP 1.1/4", AISI 316-63In stock
Enquiry
HT-2057N-32LXBall valve type 2057N-X three-way "L" BSP thread 1.1/4", AISI 316-63In stock
Enquiry
HT-2057N-40L3-way ball valve type 2057N "L" BSP 1.1/2", AISI 316-63In stock
Enquiry
HT-2057N-40LXBall valve type 2057N-X three-way "L" BSP thread 1.1/2", AISI 316-63In stock
Enquiry
HT-2057N-50L3-way ball valve type 2057N "L" BSP 2", AISI 316-63In stock
Enquiry
HT-2057N-50LX3-way ball valve type 2057N-X "L" BSP 2", AISI 316-63In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The universal three-way ball valve type 2057N in “L” configuration is a reliable solution designed for demanding industrial applications, ensuring safe and efficient flow control across a wide range of media. Manufactured with a robust CF8M stainless steel body and ball, complemented by a durable AISI 304 stainless steel lever with lock, it guarantees long-lasting resistance to corrosion and mechanical wear. Equipped with PTFE/RTFE ball sealing and PTFE stem sealing, the valve provides excellent tightness and chemical resistance, making it suitable for air, gases, water, steam, chemicals, and petrochemical products, provided compatibility with the sealing materials is observed. Its BSP female thread connection ensures easy integration into existing systems, while the ISO 5211 flange allows for convenient actuator mounting. Designed to operate within a temperature range of -20°C to +200°C, with working pressure dependent on temperature, the valve complies with the PED Directive 2014/68/EU, ensuring adherence to European safety standards. This versatile and high-performance valve is an ideal choice for industries seeking reliability, safety, and efficiency in fluid control systems.

Additional information

Material

SS – stainless steel

Do you need a larger quantity of products or a bespoke quote?
