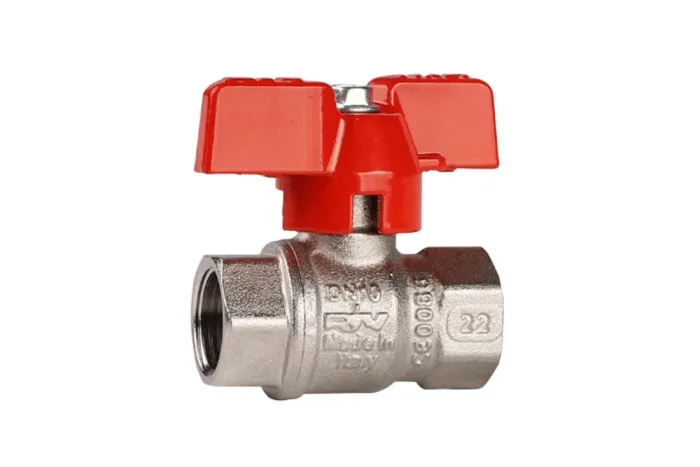

Ball valve with a butterfly handle aluminum with a female BSP thread, type 4174

Additional information

Material

B – brass (bronze)

A universal ball valve type 4174 intended for installation industrial. It can be used for air, gases, water, chemicals, products petrochemical, etc., taking into account resistance chemical material valve and seal. meets requirements the directive PED 2014/68/UE. pressure working dependent is od temperatures use. Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: NBR. Connection: BSP female. Operating temperature: od -20°C up to +110°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RV-4174-06Valve ball type 4174 1/4" BSP female, brass, butterfly lever aluminum-40In stock0 €
Enquiry
RV-4174-10Valve ball type 4174 3/8" BSP female, brass, butterfly lever aluminum-40In stock0 €
Enquiry
RV-4174-13Valve ball type 4174 1/2" BSP female, brass, butterfly lever aluminum-40In stock0 €
Enquiry
RV-4174-19Valve ball type 4174 3/4" BSP female, brass, butterfly lever aluminum-32In stock0 €
Enquiry
RV-4174-25Valve ball type 4174 1" BSP female, brass, butterfly lever aluminum-32In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

A universal ball valve type 4174 intended for installation industrial. It can be used for air, gases, water, chemicals, products petrochemical, etc., taking into account resistance chemical material valve and seal. meets requirements the directive PED 2014/68/UE. pressure working dependent is od temperatures use. Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: NBR. Connection: BSP female. Operating temperature: od -20°C up to +110°C.

Additional information

Material

B – brass (bronze)
