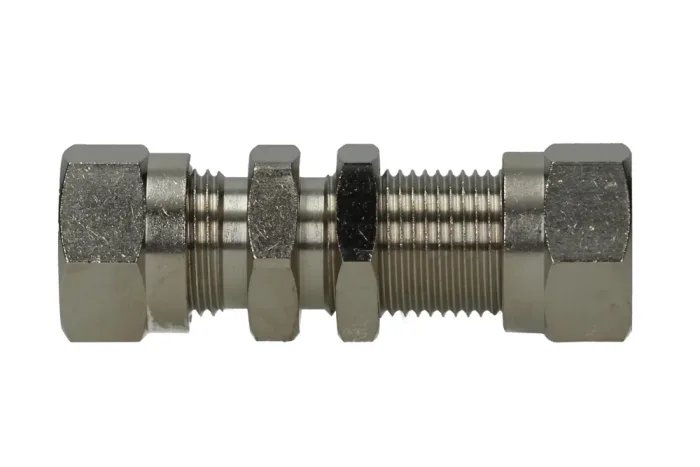

Twisted Bulkhead Coupling for Pneumatic Pipes and Hoses, Type B4
The B4 type bulkhead fitting with cutting ring offers a reliable and durable solution for secure connections between copper pipes and plastic hoses, ensuring optimal performance even in demanding applications. Manufactured from high-quality nickel-plated brass, it combines excellent corrosion resistance with long-lasting strength, making it ideal for both industrial and commercial use. Designed to withstand working pressures up to 60 bar, this fitting guarantees safety and efficiency in fluid systems. For hose connections, the use of reinforcing sleeves (B12) is recommended to enhance stability and extend service life. With its precise engineering and robust construction, the B4 bulkhead fitting provides a professional-grade connection that supports seamless installation and dependable operation in a wide range of hydraulic and pneumatic systems.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| MW-2204001 | B4 straight partition connector, tube (hose) 6/4 - tube (hose) 6/4 | - | 60 | |
| MW-2204002 | B4 straight partition connector, tube (hose) 8/6 - tube (hose) 8/6 | - | 60 | |
| MW-2204003 | B4 straight partition connector, tube (hose) 10/8 - tube (hose) 10/8 | - | 60 | |
| MW-2204004 | B4 straight partition connector, tube (hose) 12/10 - tube (hose) 12/10 | - | 60 | |
| MW-2204005 | B4 straight partition connector, tube (hose) 15/12 - tube (hose) 15/12 | - | 60 |
The B4 type bulkhead fitting with cutting ring offers a reliable and durable solution for secure connections between copper pipes and plastic hoses, ensuring optimal performance even in demanding applications. Manufactured from high-quality nickel-plated brass, it combines excellent corrosion resistance with long-lasting strength, making it ideal for both industrial and commercial use. Designed to withstand working pressures up to 60 bar, this fitting guarantees safety and efficiency in fluid systems. For hose connections, the use of reinforcing sleeves (B12) is recommended to enhance stability and extend service life. With its precise engineering and robust construction, the B4 bulkhead fitting provides a professional-grade connection that supports seamless installation and dependable operation in a wide range of hydraulic and pneumatic systems.
Additional information
| Material | B – brass (bronze) |
|---|
