VERSILON PTFE Smooth-Bore Teflon Hose

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

200

Minimum operating temperature [°C]

260

Vacuum resistance

no

Standard length [m]

100, 25, 30, 50

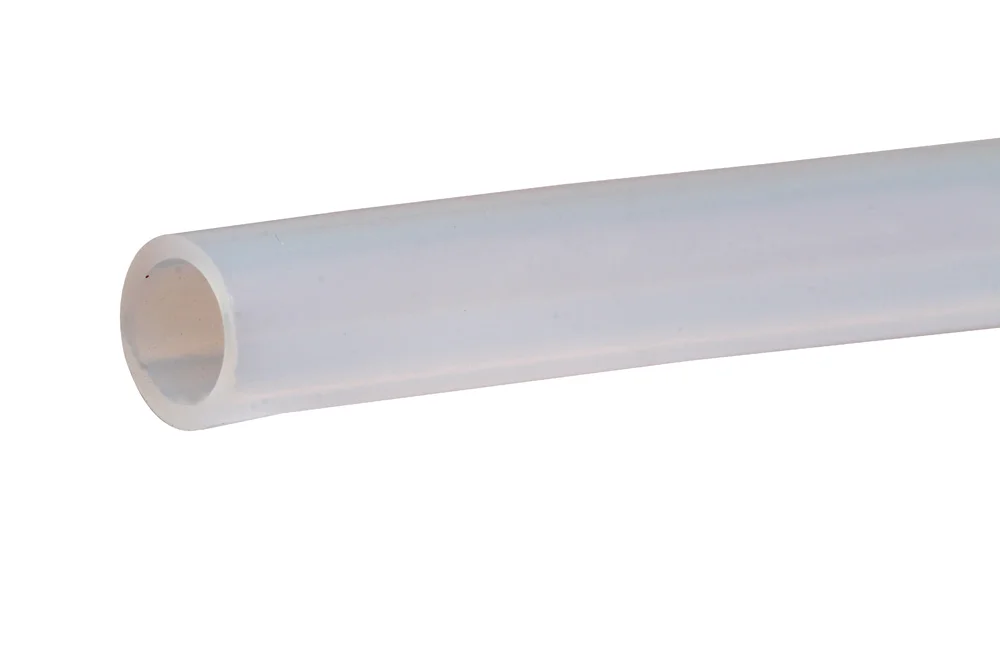

This lightweight, semi-transparent PTFE hose with smooth walls combines exceptional chemical resistance with remarkable versatility, making it an ideal solution for a wide range of industrial applications. Perfectly suited for low-pressure installations, it ensures reliable performance when transporting chemicals, paints, adhesives, fuels (both liquid and gaseous), oils, lubricants, air, gases, water, steam, and water-based fluids. Thanks to its low friction coefficient and self-lubricating properties, the hose can also serve as an effective mechanical guide for hoses or rods, enhancing efficiency in complex systems. Its flame-retardant design (UL94 V-0) and high oxygen index (LOI) provide additional safety in demanding environments, while the robust safety factor of 4:1 guarantees durability and reliability. Operating in extreme conditions from -200°C up to +260°C, this PTFE hose maintains flexibility and strength, with working pressures ranging from 2.3 bar to 10.8 bar depending on diameter. Although not antistatic and not recommended for pneumatic plug connections, it remains a trusted choice across industries where resistance, safety, and long-lasting performance are essential.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
VE-CHEMPTFE-02X03VERSILON PTFE hose 2x3 mm28.3
VE-CHEMPTFE-02X04VERSILON PTFE hose 2x4 mm214
VE-CHEMPTFE-03X04VERSILON PTFE hose 3x4 mm35.7
VE-CHEMPTFE-03X05VERSILON PTFE hose 3x5 mm310.8
VE-CHEMPTFE-04X05VERSILON PTFE hose 4x5 mm44.9
VE-CHEMPTFE-04X06VERSILON PTFE hose 4x6 mm48.5
VE-CHEMPTFE-05X06VERSILON PTFE hose 5x6 mm53.8
VE-CHEMPTFE-05X07VERSILON PTFE hose 5x7 mm57.3
VE-CHEMPTFE-06X07VERSILON PTFE hose 6x7 mm63.1
VE-CHEMPTFE-06X08VERSILON PTFE hose 6x8 mm66.3
VE-CHEMPTFE-08X10VERSILON PTFE hose 8x10 mm84.8
VE-CHEMPTFE-10X12VERSILON PTFE hose 10x12 mm104.3
VE-CHEMPTFE-12X14VERSILON PTFE hose 12x14 mm123.5
VE-CHEMPTFE-14X16VERSILON PTFE hose 14x16 mm142.8
VE-CHEMPTFE-16X18VERSILON PTFE hose 16x18 mm162.5
VE-CHEMPTFE-18X20VERSILON PTFE hose 18x20 mm182.3

This lightweight, semi-transparent PTFE hose with smooth walls combines exceptional chemical resistance with remarkable versatility, making it an ideal solution for a wide range of industrial applications. Perfectly suited for low-pressure installations, it ensures reliable performance when transporting chemicals, paints, adhesives, fuels (both liquid and gaseous), oils, lubricants, air, gases, water, steam, and water-based fluids. Thanks to its low friction coefficient and self-lubricating properties, the hose can also serve as an effective mechanical guide for hoses or rods, enhancing efficiency in complex systems. Its flame-retardant design (UL94 V-0) and high oxygen index (LOI) provide additional safety in demanding environments, while the robust safety factor of 4:1 guarantees durability and reliability. Operating in extreme conditions from -200°C up to +260°C, this PTFE hose maintains flexibility and strength, with working pressures ranging from 2.3 bar to 10.8 bar depending on diameter. Although not antistatic and not recommended for pneumatic plug connections, it remains a trusted choice across industries where resistance, safety, and long-lasting performance are essential.

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

200

Minimum operating temperature [°C]

260

Vacuum resistance

no

Standard length [m]

100, 25, 30, 50
